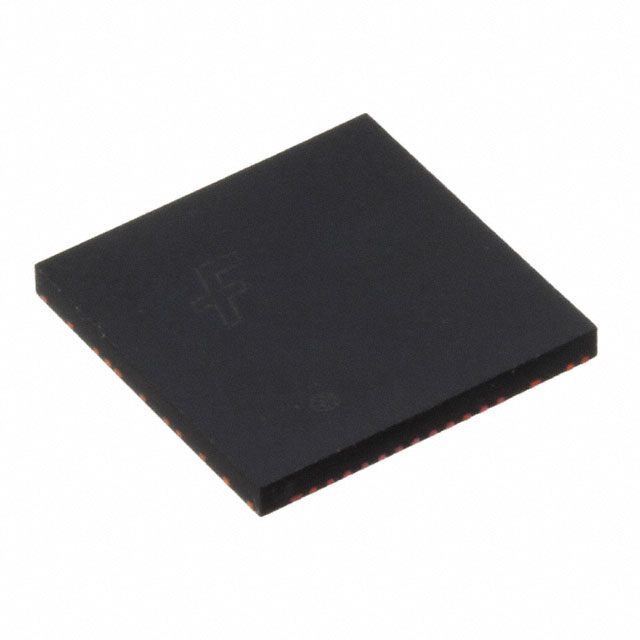

FSB70450

Manufacturer :

onsemi

Product Category :

Power Driver Modules

Mount :

Surface Mount

Switching Frequency :

15kHz

Height :

1.4mm

Published :

2016

Min Breakdown Voltage :

500V

Reach Compliance Code :

not_compliant

Max Operating Temperature :

150°C

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Operating Supply Voltage :

300V

Peak Reflow Temperature (Cel) :

260

Max Power Dissipation :

110W

Number of Terminations :

27

Packaging :

Tape and Reel (TR)

Operating Supply Current :

1.7mA

Length :

13mm

Frequency :

15kHz

Output Current :

4.8A

Mounting Type :

Surface Mount

Supply Voltage :

15V

Drain to Source Resistance :

1.9Ohm

Terminal Finish :

Tin (Sn)

Max Supply Voltage :

400V

Collector Emitter Voltage (VCEO) :

500V

Pbfree Code :

yes

Power Supplies :

15V

Max Current Rating :

4.8A

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Series :

Motion SPM® 7

Package / Case :

27-PowerLQFN Module

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Min Operating Temperature :

-40°C

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Type :

MOSFET

Weight :

2.174663g

JESD-609 Code :

e3

Factory Lead Time :

6 Weeks

Number of Pins :

27

Max Collector Current :

4.8A

HTS Code :

8541.29.00.95

Voltage - Isolation :

1500Vrms

Qualification Status :

Not Qualified

Configuration :

3 Phase

Number of Outputs :

3

Width :

13mm
