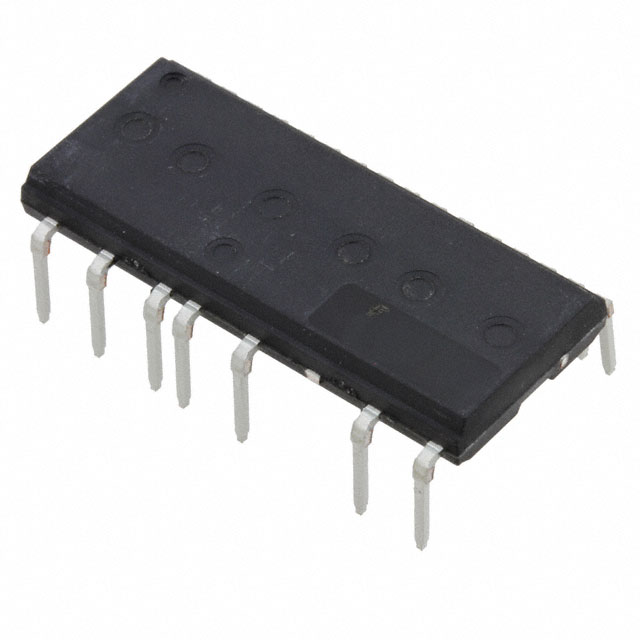

FSB50250
- Mfr.Part #
- FSB50250
- Manufacturer
- onsemi
- Package / Case
- 23-PowerDIP Module (0.573, 14.56mm)
- Datasheet
- Download
- Description
- IC SMART POWER MOD 2A SPM23-AA
- Stock
- 219
- In Stock :
- 219
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- onsemi
- Product Category :
- Power Driver Modules
- HTS Code :
- 8541.29.00.95
- Pbfree Code :
- yes
- Supply Voltage :
- 15V
- Mount :
- Through Hole
- Min Operating Temperature :
- -40°C
- Series :
- Motion SPM® 5
- Max Current Rating :
- 1.2A
- Voltage - Isolation :
- 1500Vrms
- Factory Lead Time :
- 8 Weeks
- Qualification Status :
- Not Qualified
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Number of Terminations :
- 23
- Mounting Type :
- Through Hole
- Package / Case :
- 23-PowerDIP Module (0.573, 14.56mm)
- Base Part Number :
- FSB50250
- Height :
- 3.3mm
- Terminal Position :
- Dual
- Reach Compliance Code :
- not_compliant
- Output Current-Max :
- 3.1A
- Number of Functions :
- 1
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Number of Pins :
- 23
- Power Supplies :
- 15V
- Supply Current-Max (Isup) :
- 0.2mA
- Length :
- 29.2mm
- Width :
- 12.2mm
- Supply Voltage-Min (Vsup) :
- 13.5V
- Configuration :
- 3 Phase
- Min Breakdown Voltage :
- 500V
- Type :
- IGBT
- Terminal Finish :
- Tin (Sn)
- Max Supply Voltage :
- 400V
- Collector Emitter Voltage (VCEO) :
- 500V
- Weight :
- 5.968g
- Switching Frequency :
- 15kHz
- RoHS Status :
- ROHS3 Compliant
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Nominal Supply Current :
- 200μA
- Published :
- 2014
- Max Operating Temperature :
- 150°C
- Max Collector Current :
- 1.2A
- ECCN Code :
- EAR99
- JESD-609 Code :
- e3
- Lifecycle Status :
- ACTIVE (Last Updated: 23 hours ago)
