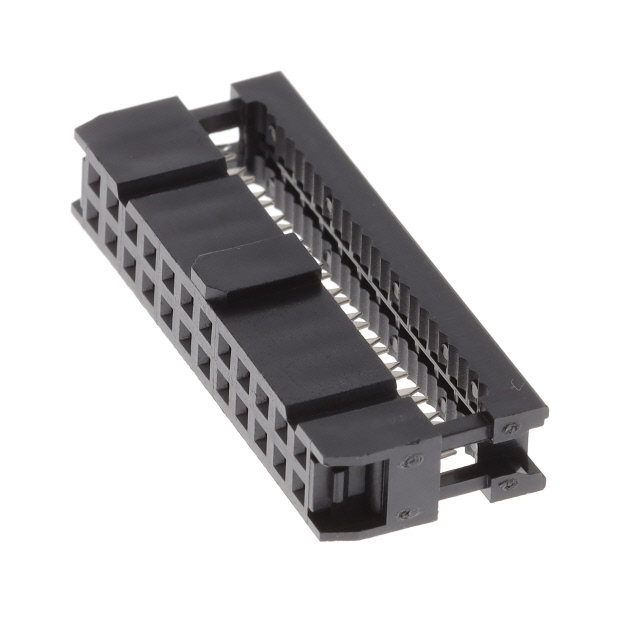

FCS-24-SG
Or copy the link below:
- Mfr.Part #
- FCS-24-SG
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- SOCKET FLAT CABLE IDC 24P 2.54MM
- Stock
- 672
- In Stock ：
- 672
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Free Hanging, Panel Mount
- Contact Type :
- Female Socket
- Operating Temperature (Min) :
- -40°C
- Total Number of Contacts :
- 24
- Body Length or Diameter :
- 1.15 inch
- Number of Rows :
- 2
- Series :
- FCS
- Factory Lead Time :
- 9 Weeks
- Packaging :
- Tray
- Contact Design :
- PREASSEM CONN
- Length - Termination :
- 0.07 inch
- Contact Resistance :
- 1000mOhm
- Cable Termination :
- IDC
- Body Breadth :
- 0.165 inch
- Row Spacing :
- 0.100 (2.54mm)
- Feature :
- Feed Through, Polarizing Key
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Connector Type :
- Socket
- Color :
- Black
- Number of Positions :
- 24
- Mounting Option 1 :
- LOCKING
- Pitch :
- 0.100 2.54mm
- Wire Type :
- Ribbon Cable
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination Type :
- IDC
- Insulation Resistance :
- 100000000Ohm
- Mounting Type :
- Free Hanging (In-Line)
- Reference Standard :
- UL, CSA
- Contact Finish :
- Gold
- Operating Temperature (Max) :
- 105°C
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Push-Pull
- Rated Current (Signal) :
- 1A
- Polarization Key :
- POLARIZED HOUSING
- Dielectric Withstanding Voltage :
- 500VAC V
- Contact Finish Thickness :
- Flash
- Contact Material :
- Brass
- Reliability :
- COMMERCIAL
- Datasheets
- FCS-24-SG
