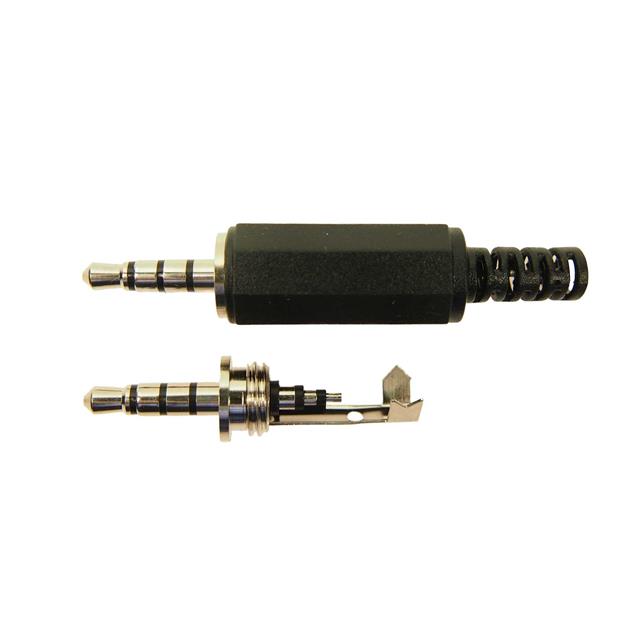

FC68124

Manufacturer :

CLIFF

Product Category :

Audio Connectors

Industry Recognized Mating Diameter :

3.50mm (0.141, 1/8, Mini Plug) - Headphone

Includes :

-

Connector Type :

Phone Plug

Manufacturer :

Cliff Electronic Components

Shielding :

Unshielded

Housing Material :

-

Internal Switch(s) :

Does Not Contain Switch

Features :

-

Thread Size :

-

Operating Temperature :

-

Contact Plating :

Nickel Plated Contacts

Option :

GENERAL PURPOSE

Series :

-

Number of Positions/Contacts :

4 Conductors, 4 Contacts

Contact Material - Plating :

-

Body/Shell Style :

PLUG

Body Material :

-

Body Color :

Black

Insulation Color :

-

Mating Length/Depth :

0.551 (14.00mm)

Panel Hole Size :

-

Termination :

Solder

Pin Diameter :

3.5mm

DIN Conformance :

No

Actual Diameter :

0.138 (3.50mm)

Mounting Type :

Free Hanging (In-Line)

Cable Opening :

0.157 (4.00mm)

Signal Lines :

Stereo (4 Conductor, TRRS)

Product Status :

Active

Gender :

PLUG

Number of Ports :

1

Reach Compliance Code :

Compliant

MIL Conformance :

No

Voltage - Rated :

-

IEC Conformance :

No

Package :

Bag

Number of Poles :

4

Contact Material :

-
