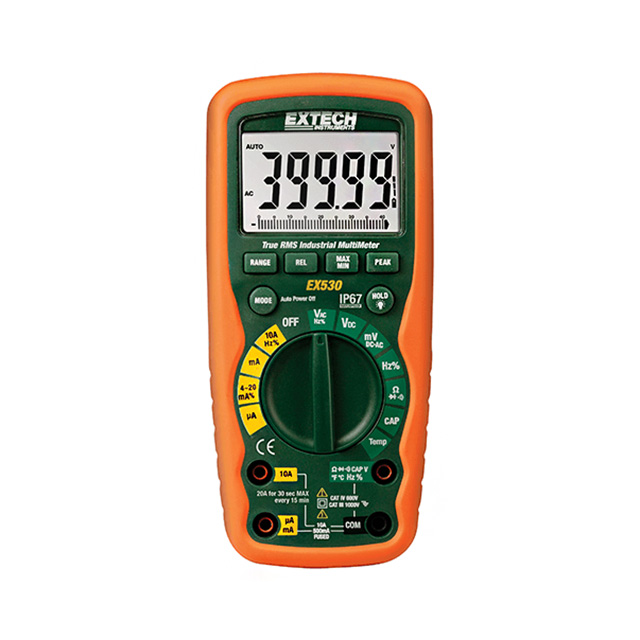

EX530

Manufacturer :

FLIR Extech

Product Category :

Voltage metering :

AC/DC

Display :

Digital

Brand :

Extech

RoHS :

Details

Amperage reading range DC (min.) :

0.01μA

Capacitance :

40,000 µF

Reading range - capacity :

0.01 nF - 40mF

Capacitance Range :

0.001 nF to 40 mF

A AC reading range (min.) :

0.01μA

A DC reading range (max.) :

10A

Frequency :

100,000 kHz

Display (counts) :

40000

Temperature :

- 45 to +750°C

Reading category :

CAT III 1000 V,CAT IV 600 V

Current reading :

AC/DC

V AC reading range (max.) :

1000V

Height :

187mm

Temperature reading range (max.) :

+750°C

Temperature reading range (min.) :

-45°C

Interfaces :

NONE

Ranging :

Manual

Voltage reading range DC (min.) :

0.01mV

Product :

Multimeters

Weight :

342g

Features :

Waterproof (IP67)

Amperage reading range AC (max.) :

10A

Data Hold :

Data Hold

Voltage DC reading range (max.) :

1000V

Backlight :

yes

Reading range - resistance :

0.01 Ω - 40MΩ

Power supply (details) :

9 V battery pack

Measurement type (details) :

True RMS

Calibrated to :

Manufacturers standards (no certificate)

Displays :

40000 Counts

Voltage Range :

0.01 mVAC to 1 kVAC, 0.01 mVDC to 1 kVDC

AC resistance :

3MΩ

Width :

81mm

V AC reading range (min.) :

0.01mV

Dim :

(W x H) 81 mm x 187 mm

Frequency reading range :

0.001 Hz - 100MHz

Subcategory :

Test Equipment

Accuracy :

0.0006

Product Category :

Digital Multimeters

Basic accuracy :

± 0.06%

Type :

EX530

Product Type :

Multimeters

Display Count :

40000

Manufacturer :

Extech Instruments
