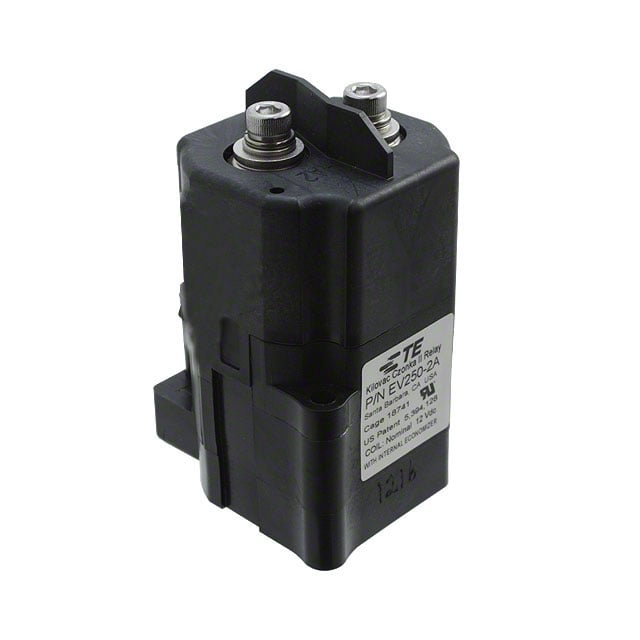

EV250-2A
- Mfr.Part #
- EV250-2A
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPST 400A 12V
- Stock
- 15,959
- In Stock :
- 15,959
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Power Relays, Over 2 Amps
- ELV :
- Non-Compliant
- Coil Current :
- 400A
- Termination Style :
- Stud
- Operating Temperature :
- -40°C~85°C
- Length :
- 57.15mm
- Depth :
- 69.85mm
- Coil Voltage (DC) :
- 12V
- Body Height :
- 88.9mm
- Operate Time :
- 18ms
- Sealing :
- Hermetically Sealed
- Mount :
- Chassis Mount, Panel
- HTS Code :
- 8536.49.00.75
- Throw Configuration :
- SPST
- Mounting Type :
- Chassis Mount
- Packaging :
- Bulk
- Must Release Voltage :
- 5VDC
- Must Operate Voltage :
- 9VDC
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- RoHS Status :
- Non-RoHS Compliant
- Lead Free :
- Contains Lead, Not Applicable
- Coil Voltage :
- 12VDC
- Relay Type :
- GENERAL PURPOSE
- ECCN Code :
- EAR99
- Physical Dimension :
- 69.85mm x 57.15mm x 88.9mm
- Contact Form :
- SPST-NO (DM) (1 Form X)
- Connector Type :
- Power
- Coil Power :
- 4080mW
- Series :
- EV250, KILOVAC
- Coil/Input Supply Type :
- DC
- Switching Voltage :
- 1800VDC -Max
- Electrical Life :
- 50000 Cycle(s)
- Factory Lead Time :
- 28 Weeks
- Contact/Output Supply Type :
- AC/DC
- Coil Type :
- Non Latching
- Contact Material :
- Copper
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Magnetic Blowout
- Relay Action :
- Momentary
- Published :
- 1999
- Release Time :
- 15ms
- Number of Pins :
- 2
- Datasheets
- EV250-2A

EV250-2A datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity Aerospace, Defense and Marine stock available at
