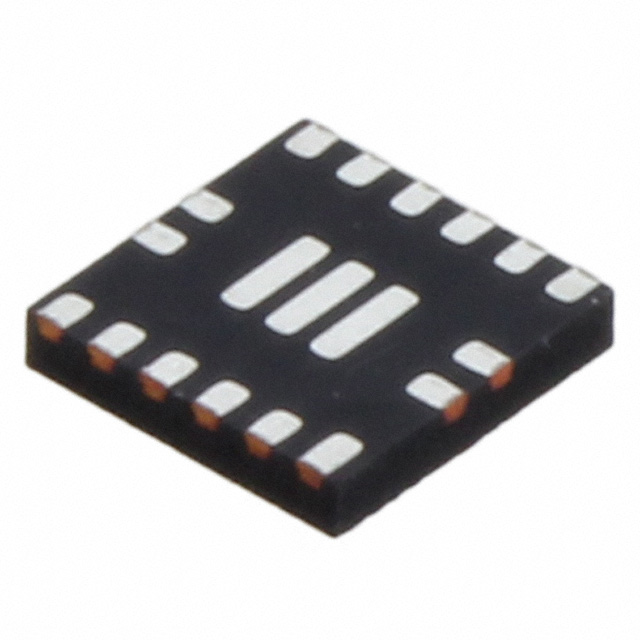

EV1320QI

Manufacturer :

Altera (Intel)

Product Category :

Special Purpose Regulators

Output Voltage :

0.75V

Number of Functions :

1

Terminal Finish :

Matte Tin (Sn) - annealed

Peak Reflow Temperature (Cel) :

260

JESD-609 Code :

e3

Packaging :

Cut Tape (CT)

Ambient Temperature Range High :

85°C

Voltage - Output :

0.5V~0.9V

Reach Compliance Code :

not_compliant

Voltage - Input :

0.95V~1.8V 3V~3.465V

RoHS Status :

RoHS Compliant

Switching Frequency-Max :

750kHz

Min Supply Voltage :

950mV

Input Voltage-Nom :

3.3V

Terminal Pitch :

0.5mm

Terminal Position :

QUAD

Surface Mount :

yes

Applications :

Converter, DDR

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Length :

3mm

Width :

3mm

Max Supply Voltage :

3.465V

Number of Terminations :

16

Mounting Type :

Surface Mount

Series :

Enpirion®

Output Current :

2A

Max Junction Temperature (Tj) :

125°C

Factory Lead Time :

10 Weeks

Terminal Form :

NO LEAD

Package / Case :

16-UFQFN Exposed Pad

ECCN Code :

EAR99

Number of Outputs :

1

Height :

600μm

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Operating Temperature :

-40°C~85°C

Analog IC - Other Type :

SWITCHING REGULATOR
