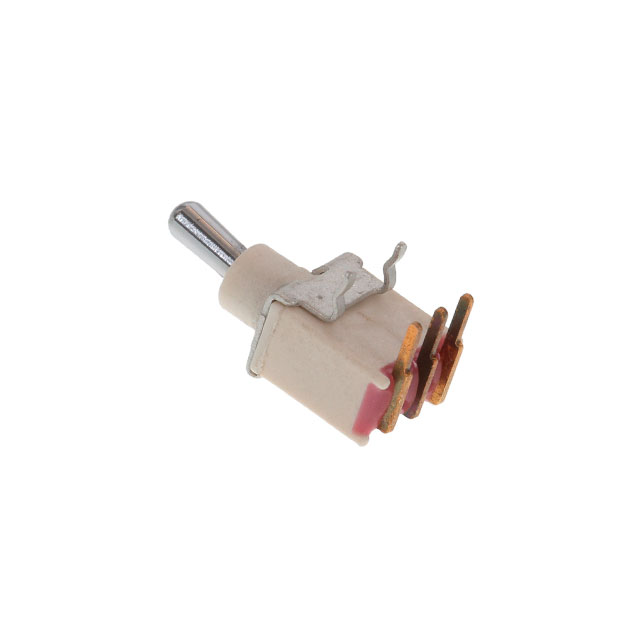

ET08MD1ABE

Manufacturer :

C&K

Product Category :

Mount :

Brackets, Through Hole

Illumination Type :

Illuminated, Non-Illuminated

REACH SVHC :

No SVHC

Actuator Length :

6.10mm

Illumination :

Non-Illuminated

Width :

8.13mm

Ratings :

IP57, Waterproof

Termination :

PC Pins

Contact Material :

Gold

Circuit :

SPDT

Mounting Type :

Through Hole, Right Angle

Lead Free :

Lead Free

Electrical Life :

30,000 Cycles

Series :

ET

Number of Poles :

1

Feature :

Epoxy Sealed Terminals

Orientation :

RIGHT ANGLE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating (Amps) :

0.4VA AC/DC

Factory Lead Time :

10 Weeks

Voltage - Rated DC :

20V

Switch Function :

On-Mom

Actuator Material :

Brass, Chrome Plated

Bushing Thread :

Unthreaded

Power Rating :

400mW

Max Voltage Rating (DC) :

20V

Height :

5.08mm

Operating Temperature :

-30°C~85°C

Length :

8.13mm

Radiation Hardening :

No

Ingress Protection :

IP57 - Dust Protected, Waterproof

Termination Style :

PC Pin

Voltage - Rated AC :

20V

Packaging :

Bulk

Published :

2006

Max Voltage Rating (AC) :

20V

Contact Resistance :

10MOhm

Actuator Type :

Standard Round

RoHS Status :

ROHS3 Compliant
