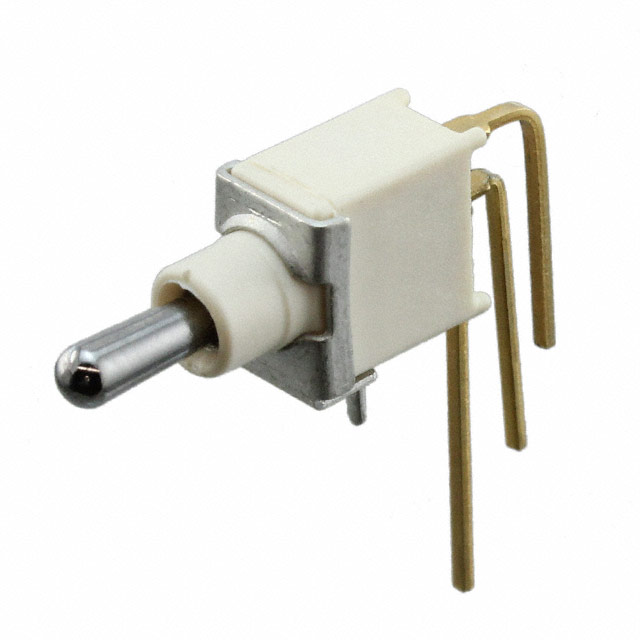

ET05MD1AVBE

Manufacturer :

C&K

Product Category :

Termination Style :

PC Pin

Radiation Hardening :

No

Published :

2003

Insulation Resistance :

1GOhm

Actuator Type :

Standard Round

Actuator Length :

6.10mm

Throw Configuration :

SPDT, SPST

Power Rating :

400mW

Packaging :

Tray

Switch Function :

Mom-Off-Mom

Factory Lead Time :

10 Weeks

Actuator Material :

Brass, Chrome Plated

REACH SVHC :

No SVHC

Electrical Life :

30,000 Cycles

Feature :

Epoxy Sealed Terminals

Operating Temperature :

-30°C~85°C

Max Voltage Rating (DC) :

20V

Material :

Nylon

Mount :

Brackets, Through Hole, Vertical

Illumination Type :

Illuminated, Non-Illuminated

Current Rating (Amps) :

0.4VA AC/DC

Flammability Rating :

UL94 V-0

Termination :

PC Pins

Width :

6.22mm

Mounting Type :

Through Hole, Right Angle, Vertical

Depth :

25.21mm

Ratings :

IP57, Waterproof

Illumination :

Non-Illuminated

Ingress Protection :

IP57 - Dust Protected, Waterproof

Length :

6.22mm

Voltage - Rated DC :

20V

Contact Plating :

Gold

Circuit :

SPDT

RoHS Status :

ROHS3 Compliant

Voltage - Rated AC :

20V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

ET

Max Voltage Rating (AC) :

20V

Bushing Thread :

Unthreaded
