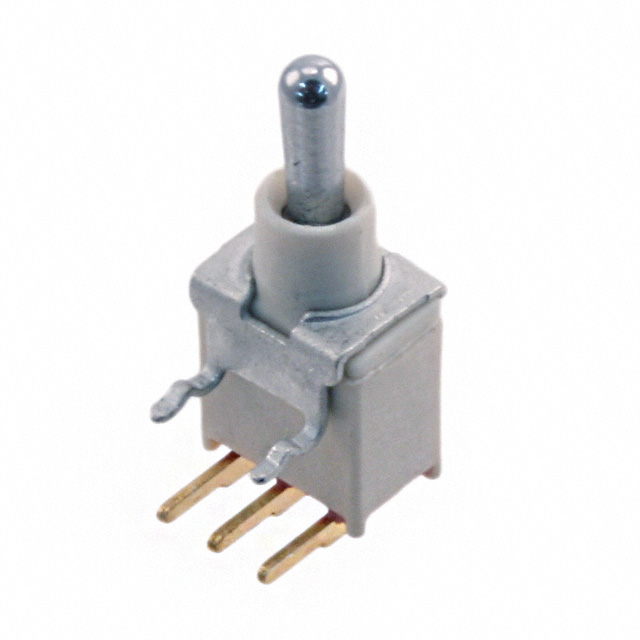

ET03MD1ABE

Manufacturer :

C&K

Product Category :

Number of Poles :

1

Actuator Type :

Standard Round

Termination :

PC Pins

Bushing Thread :

Unthreaded

Operating Temperature :

-30°C~85°C

Published :

2006

Current Rating (Amps) :

0.4VA AC/DC

Termination Style :

PC Pin

RoHS Status :

ROHS3 Compliant

Circuit :

SPDT

Electrical Life :

30,000 Cycles

Contact Resistance :

10MOhm

Max Voltage Rating (AC) :

20V

Radiation Hardening :

No

Orientation :

RIGHT ANGLE

Lead Free :

Lead Free

Illumination :

Non-Illuminated

Packaging :

Bulk

Switch Function :

On-Off-On

REACH SVHC :

No SVHC

Mounting Type :

Through Hole, Right Angle

Feature :

Epoxy Sealed Terminals

Mount :

Brackets, Through Hole

Ingress Protection :

IP57 - Dust Protected, Waterproof

Width :

8.13mm

Max Voltage Rating (DC) :

20V

Factory Lead Time :

10 Weeks

Series :

ET

Length :

8.13mm

Voltage - Rated DC :

20V

Voltage - Rated AC :

20V

Actuator Length :

6.10mm

Ratings :

IP57, Waterproof

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Gold

Power Rating :

400mW

Actuator Material :

Brass, Chrome Plated

Height :

5.08mm
