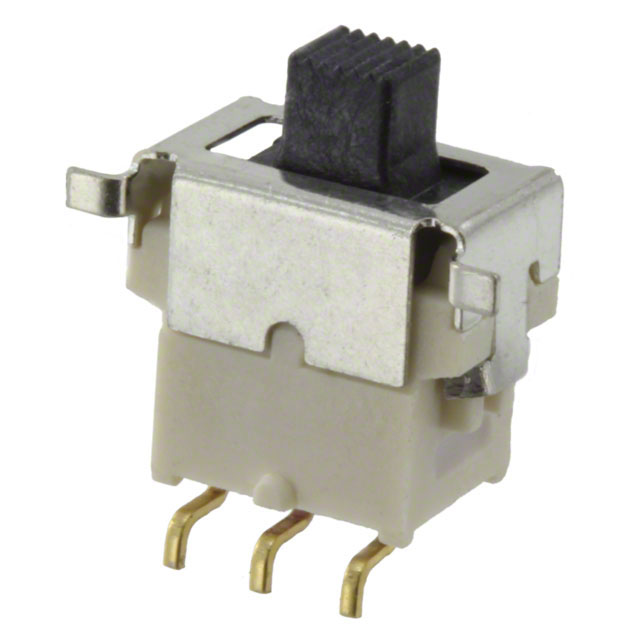

ES03MSABE
Or copy the link below:
- Mfr.Part #
- ES03MSABE
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE SPDT 0.4VA 20V
- Stock
- 932
- In Stock ：
- 932
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 12.41mm
- Packaging :
- Tape and Reel (TR)
- Electrical Life :
- 40,000 Cycles
- Circuit :
- SPDT
- Contact Resistance :
- 50mOhm
- Published :
- 2004
- Series :
- ES
- Max Voltage Rating (AC) :
- 20V
- Termination :
- Gull wing
- Contact Timing :
- NOT SPECIFIED
- Feature :
- Epoxy Sealed Terminals, IP57
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Surface Mount, Right Angle
- RoHS Status :
- ROHS3 Compliant
- Depth :
- 13.78mm
- Max Voltage Rating (DC) :
- 20V
- Actuator Type :
- Standard
- Voltage - Rated DC :
- 20V
- Switch Travel :
- 2.29mm
- Actuator Material :
- Liquid Crystal Polymer (LCP)
- Operating Temperature :
- -30°C~85°C
- Radiation Hardening :
- No
- Mount :
- Surface Mount
- Current Rating (Amps) :
- 0.4VA AC/DC
- Voltage - Rated AC :
- 20V
- Actuator Length :
- 3.07mm
- Mechanical Life :
- 40,000 Cycles
- Contact Material :
- Bronze
- Switch Function :
- On-Off-On
- Housing Material :
- Nylon
- Lead Free :
- Lead Free
- Contact Finish :
- Gold
- Termination Style :
- Gull wing
- Factory Lead Time :
- 16 Weeks
- Datasheets
- ES03MSABE
ES03MSABE Documents
ES03MSABE datasheet pdf and Slide Switches product details from C&K stock available at
Features: The ES03MSABE Slide Switch has a maximum voltage rating of 20V AC/DC and a maximum current rating of 0.4VA. It is designed for a long life of up to 40,000 cycles and is RoHS compliant.
Applications: The ES03MSABE Slide Switch is suitable for a wide range of applications, including consumer electronics, automotive, industrial, and medical. It is ideal for use in applications where a reliable and durable switch is required.
