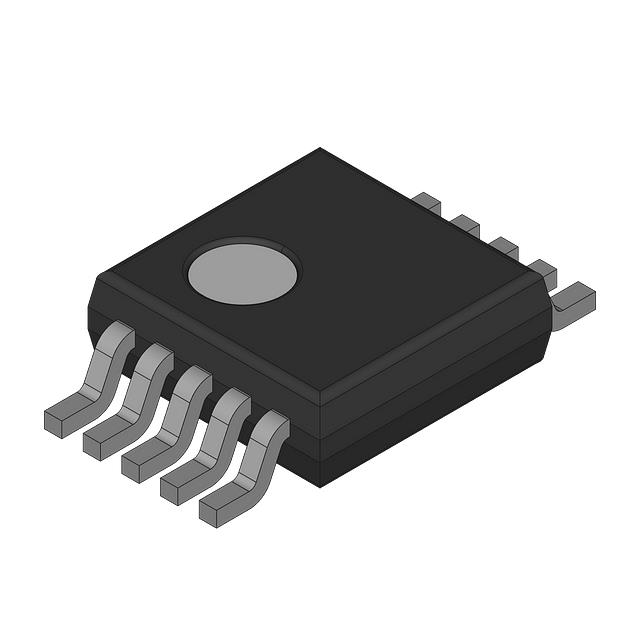

EL8202IY

Share

Or copy the link below:

Mfr.Part #
EL8202IY
Manufacturer
Elantec
Package / Case
MSOP
Datasheet
Download
Description
IC OPAMP GP 2 CIRCUIT 10MSOP
Stock
21,603
In Stock :
21,603

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Elantec
Product Category :
Instrumentation, OP Amps, Buffer Amps
Consumer IC Type :
Video Amplifier
Operating Supply Voltage :
5V
Number of Terminations :
10
Qualification Status :
Not Qualified
Operating Supply Current :
5.6mA
Bandwidth :
500000 kHz
Supply Voltage-Min (Vsup) :
3V
Output Current per Channel :
65mA
Current - Input Bias :
6µA
Max Operating Temperature :
85°C
Terminal Form :
Gull wing
Length :
3mm
RoHS Status :
RoHS Compliant
Common Mode Rejection Ratio :
70 dB
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Lead Free :
Contains Lead
Slew Rate :
600 V/µs
Peak Reflow Temperature (Cel) :
240
Terminal Finish :
Tin/Lead (Sn/Pb)
Number of Channels :
2
Gain Bandwidth Product :
200MHz
Temperature Grade :
Industrial
Number of Pins :
10
Time@Peak Reflow Temperature-Max (s) :
NOT SPECIFIED
Voltage Gain :
90dB
Terminal Position :
Dual
Package / Case :
MSOP
-3db Bandwidth :
500MHz
Nominal Supply Current :
12.4mA
ECCN Code :
EAR99
Published :
2002
Input Offset Voltage (Vos) :
800μV
JESD-609 Code :
e0
Mount :
Surface Mount
Number of Functions :
2
Min Operating Temperature :
-40°C
Pin Count :
10
Height Seated (Max) :
1.1mm
Terminal Pitch :
0.5mm
Introducing Instrumentation, OP Amps, Buffer Amps Elantec EL8202IY from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:10, Bandwidth:500000 kHz, Number of Channels:2, Number of Pins:10, Package / Case:MSOP, EL8202IY pinout, EL8202IY datasheet PDF, EL8202IY amp .Beyond Instrumentation, OP Amps, Buffer Amps Elantec EL8202IY ,we also offer OP07CDR, TS321CX5 RFG, NE5532ADR, Our vast inventory has you covered. Contact us now for immediate solutions.

Elantec EL8202IY


EL8202IY datasheet pdf and Unclassified product details from Intersil (Renesas Electronics America) stock available at
