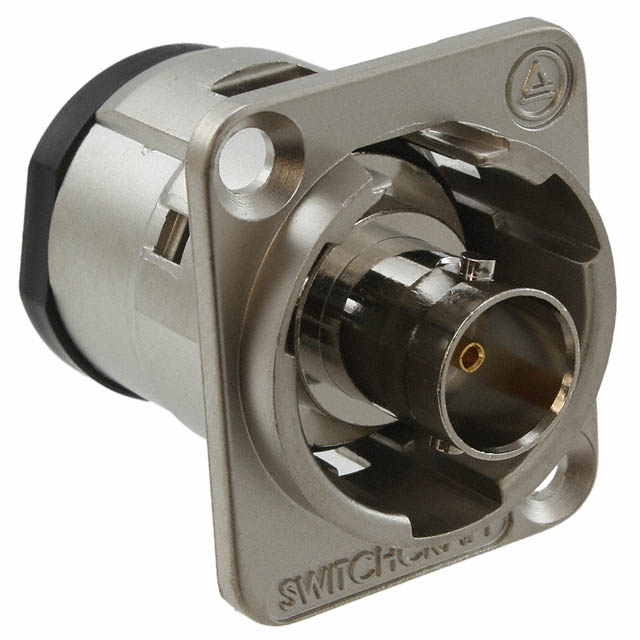

Mfr.Part #
EHBNC2
Manufacturer
Switchcraft / Conxall
Package / Case
Datasheet
Download
Description
CONN ADAPT JACK-JACK BNC 75 OHM
Stock
358
In Stock :
358

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Switchcraft / Conxall
Product Category :
Coaxial Connector (RF) Adapters
Adapter Type :
Jack to Jack
Orientation :
Vertical
Published :
2007
Connector Type :
BNC
Series :
EH
MIL Conformance :
No
Gender Type B :
Male
Body Material :
COPPER ALLOY
Contact Finish - Mating :
NOT SPECIFIED
Termination :
Solder
Fastening Type :
Bayonet Lock, Bayonet Lock
Polarity :
Standard
RoHS Status :
ROHS3 Compliant
DIN Conformance :
No
Color :
Black, Silver
Convert To (Adapter End) :
BNC Jack, Female Socket
Pbfree Code :
yes
Style :
Straight
Impedance :
75Ohm
Mounting Type :
Panel Mount
Convert From (Adapter End) :
BNC Jack, Female Socket
Contact Material :
NOT SPECIFIED
Mount :
Bulkhead, Flanges, Panel
Filter Feature :
No
Feature :
Isolated
Conversion Type :
Same Series
IEC Conformance :
No
Adapter Series :
BNC to BNC
Gender Type A :
FEMALE
Length :
39.62mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Lead Free :
Lead Free
Option :
GENERAL PURPOSE
Factory Lead Time :
12 Weeks
Center Gender :
Female to Female
Body Finish :
Nickel
Mounting Feature :
Flange
Packaging :
Bulk
Datasheets
EHBNC2
Introducing Coaxial Connector (RF) Adapters Switchcraft / Conxall EHBNC2 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Panel Mount, EHBNC2 pinout, EHBNC2 datasheet PDF, EHBNC2 amp .Beyond Coaxial Connector (RF) Adapters Switchcraft / Conxall EHBNC2 ,we also offer 112437, 112443, 031-4803-RFX, Our vast inventory has you covered. Contact us now for immediate solutions.
