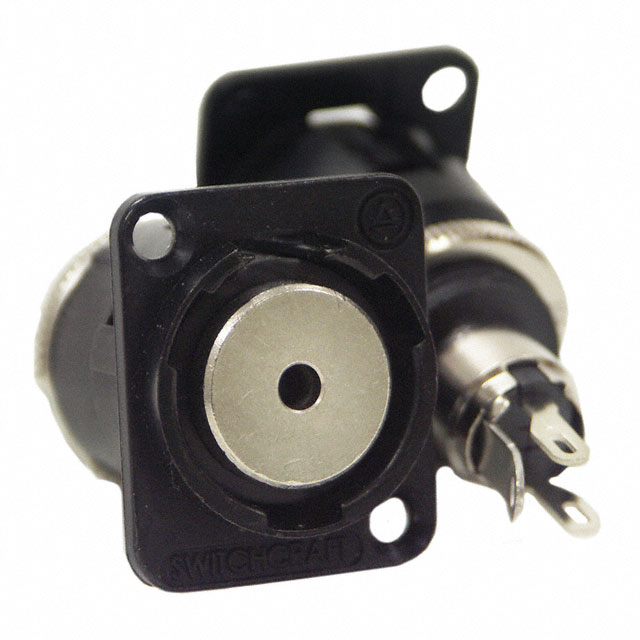

EH35MMSSCB
Or copy the link below:
- Mfr.Part #
- EH35MMSSCB
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK STEREO 3.5MM PNL MNT
- Stock
- 108
- In Stock ：
- 108
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Housing Color :
- Silver
- Feature :
- Mounting Hardware
- Body Material :
- ZINC ALLOY
- Number of Positions/Contacts :
- 3 Conductors, 3 Contacts
- Max Operating Temperature :
- 60°C
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Material - Plating :
- Silver
- Panel Hole Size :
- 0.945 24.00mm
- Internal Switch(s) :
- Does Not Contain Switch
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- Lead Free :
- Contains Lead
- Operating Temperature :
- -10°C~60°C
- Min Operating Temperature :
- -10°C
- Number of Terminations :
- 3
- Factory Lead Time :
- 8 Weeks
- Termination :
- Solder Cup
- Housing Material :
- Thermoplastic
- Packaging :
- Bulk
- Mounting Type :
- Panel Mount
- Color :
- Black
- Series :
- EH
- Orientation :
- Straight
- Mount :
- Panel
- Published :
- 2007
- Body Color :
- Silver, Black
- Actual Diameter :
- 0.142 (3.60mm)
- Gender :
- FEMALE
- RoHS Status :
- ROHS3 Compliant
- Includes :
- 5 pcs - 1 Connector, 1 Housing, 1 Nut, 2 Screws
- Number of Ports :
- 1
- Contact Material :
- COPPER ALLOY
- Shielding :
- Unshielded
- Connector Type :
- Phone Jack
- Contact Plating :
- Silver
- Signal Lines :
- Stereo (3 Conductor, TRS)
- Datasheets
- EH35MMSSCB
