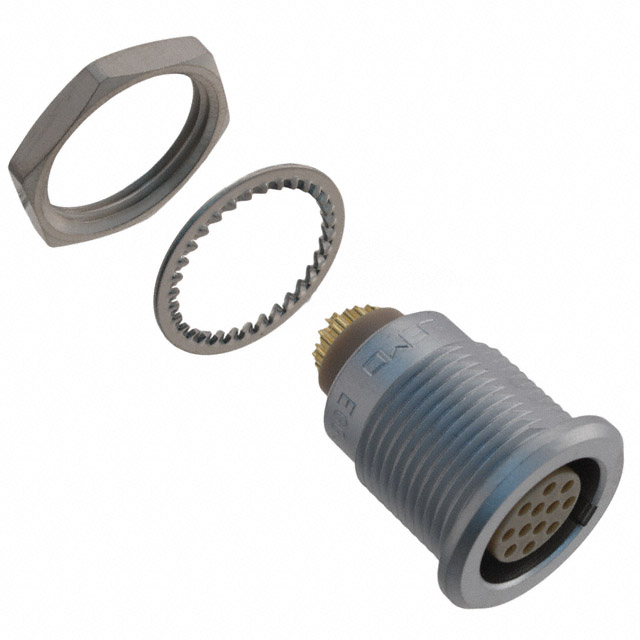

EGG.2B.312.CLL
Or copy the link below:
- Mfr.Part #
- EGG.2B.312.CLL
- Manufacturer
- LEMO
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 12P SOLDER CUP
- Stock
- 16
- In Stock ：
- 16
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEMO
- Product Category :
- Circular Connector Assemblies
- Contact Material :
- Bronze
- Factory Lead Time :
- 12 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Total Number of Contacts :
- 12
- Shell Size - Insert :
- 312
- Mounting Feature :
- Bulkhead - Rear Side Nut
- Length :
- 26.7mm
- Contact Finish Thickness - Mating :
- 59.0μin 1.50μm
- Insert Material :
- Polyetheretherketone (PEEK)
- HTS Code :
- 8536.69.40.20
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Push-Pull
- Backshell Type :
- Solid
- RoHS Status :
- ROHS3 Compliant
- Filter Feature :
- No
- Ratings :
- IP50
- Mount :
- Flanges, Panel, Rear Side Nut
- Termination :
- Solder Cup
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Coupling Type :
- Snap
- REACH SVHC :
- No SVHC
- Connector Type :
- Receptacle, Female Sockets
- ECCN Code :
- EAR99
- Contact Gender :
- FEMALE
- Diameter :
- 19.2mm
- Operating Temperature :
- -55°C~250°C
- Packaging :
- Bulk
- Orientation :
- G
- Number of Positions :
- 12
- Empty Shell :
- No
- Series :
- 2B
- Shielding :
- Shielded
- Ingress Protection :
- IP50 - Dust Protected
- IEC Conformance :
- No
- Contact Style :
- Socket
- Gender :
- Receptacle
- Material Flammability Rating :
- UL94 V-0
- Current Rating :
- 7A
- Material :
- Brass
- Mounting Type :
- Panel Mount
- Shell Finish :
- Chrome
- Color :
- Silver
- MIL Conformance :
- No
- Datasheets
- EGG.2B.312.CLL
EGG.2B.312.CLL Documents
Receptacle, Female Sockets Panel Mount 12 Positions Solder Cup Gold Chrome Bulk G Push-Pull
EGG.2B.312.CLL Overview
Packaging is in the form of Receptacle, Female Sockets.This device has a Panel Mount mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the 2B Series.There is a mounting hole at Flanges, Panel, Rear Side Nut.Devices operate at -55°C~250°C operating temperatures.
EGG.2B.312.CLL Features
2B series
EGG.2B.312.CLL Applications
There are a lot of LEMO
EGG.2B.312.CLL Circular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
