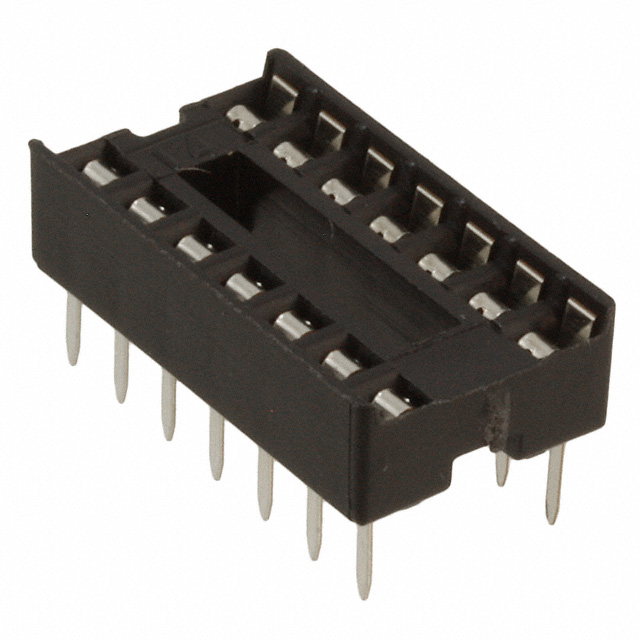

ED14DT
Or copy the link below:
- Mfr.Part #
- ED14DT
- Manufacturer
- On-Shore Technology, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 14POS TIN
- Stock
- 5,691
- In Stock ：
- 5,691
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- On-Shore Technology, Inc.
- Product Category :
- IC Sockets
- Operating Temperature :
- -55°C~110°C
- Number of Positions or Pins (Grid) :
- 14 (2 x 7)
- Contact Resistance :
- 20mOhm
- Contact Finish Thickness - Mating :
- 60.0μin 1.52μm
- Number of Pins :
- 14
- Feature :
- Open Frame
- Terminal Pitch :
- 2.54mm
- Housing Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Body Length or Diameter :
- 0.7 inch
- Contact Finish Thickness - Post :
- 60.0μin 1.52μm
- Packaging :
- Tube
- Type :
- DIP, 0.3 (7.62mm) Row Spacing
- Termination :
- Solder
- Factory Lead Time :
- 8 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Resistance :
- 5000Ohm
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- PCB Contact Row Spacing :
- 0.3 mm
- Body Depth :
- 0.201 inch
- Series :
- ED
- Current Rating :
- 1A
- Pitch - Post :
- 0.100 2.54mm
- Body Breadth :
- 0.4 inch
- Number of Contacts :
- 14
- Mating Contact Pitch :
- 0.1 inch
- PCB Contact Pattern :
- RECTANGULAR
- Pitch - Mating :
- 0.100 2.54mm
- Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Tin
- Contact Material - Post :
- Phosphor Bronze
- RoHS Status :
- ROHS3 Compliant
- Contact Material - Mating :
- Phosphor Bronze
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- ED14DT
ED14DT Documents
ED14DT datasheet pdf and Sockets for ICs, Transistors product details from On Shore Technology Inc. stock available at Xinshop
