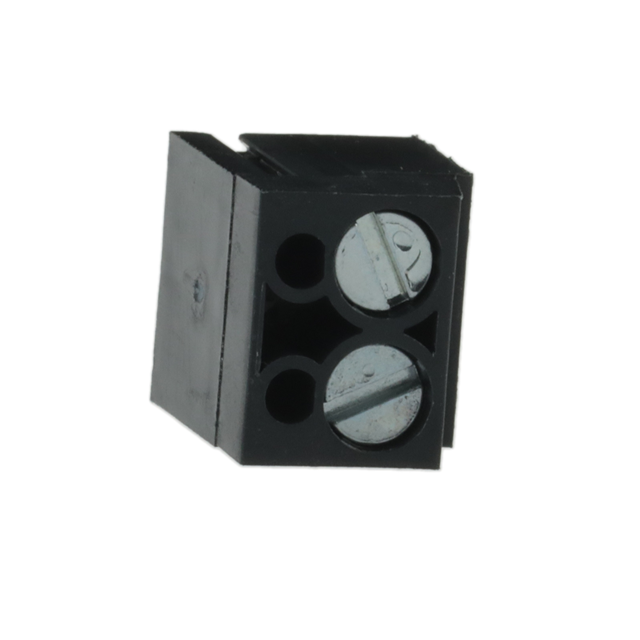

ED104/2DS
Or copy the link below:
- Mfr.Part #
- ED104/2DS
- Manufacturer
- On-Shore Technology, Inc.
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 2POS SIDE ENTRY 5MM PCB
- Stock
- 9,185
- In Stock ：
- 9,185
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- On-Shore Technology, Inc.
- Product Category :
- Wire to Board
- Wire Gauge :
- 14-22 AWG
- ECCN Code :
- EAR99
- Terminal and Terminal Block Type :
- BARRIER STRIP TERMINAL BLOCK
- Wire Gauge (Max) :
- 22 AWG
- Mating Orientation :
- Horizontal with Board
- Clamp Material - Plating :
- Steel, Stainless
- Contact Material - Plating :
- Brass
- Number of Positions Per Level :
- 2
- Mount :
- Through Hole
- Torque - Screw :
- 0.8 Nm (7.1 Lb-In)
- Width :
- 9mm
- Mounting Type :
- Through Hole
- Pitch :
- 0.197 5.00mm
- Operating Temperature :
- -30°C~105°C
- HTS Code :
- 8536.69.40.40
- Voltage :
- 300V
- Series :
- ED104/DS
- Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Housing Color :
- Grey
- Plating :
- Steel
- Pbfree Code :
- yes
- Screw Thread :
- M3
- Termination :
- Screw
- Wire Gauge (Min) :
- 14 AWG
- Number of Levels :
- 1
- Wire Termination :
- Screw - Leaf Spring, Wire Guard
- Height :
- 12.5mm
- Housing Material :
- Polyamide (PA), Nylon
- Factory Lead Time :
- 8 Weeks
- RoHS Status :
- ROHS3 Compliant
- Current :
- 15A
- Lead Free :
- Lead Free
- Lead Pitch :
- 5mm
- Color :
- Gray
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 10mm
- Datasheets
- ED104/2DS
ED104/2DS Documents
0.197 5.00mm Gray Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG ED104/DS
ED104/2DS Overview
There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number ED104/DS belongs to the ED104/DS Series.There is a Through Hole mount on the part.This device operates at a temperature of -30°C~105°C.
ED104/2DS Features
ED104/DS series
ED104/2DS Applications
There are a lot of On Shore Technology Inc.
ED104/2DS Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
