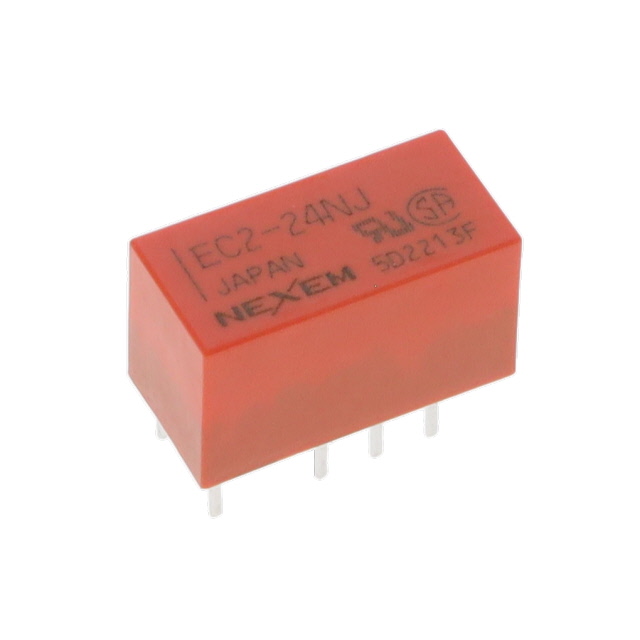

EC2-24NJ

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Packaging :

Tube

Product Type :

PCB Relays

Contact Voltage(AC)-Max :

125 V

End Contact Plating :

GOLD ALLOY

Relay Type :

GENERAL PURPOSE

Switching Voltage :

250VAC, 220VDC - Max

Pbfree Code :

yes

Product Category :

Low Signal Relays - PCB

Body Breadth :

7.5 mm

Release Time :

1 ms

Reference Standard :

CSA; EN; IEC; TUV; UL

Packing Method :

Tube

Must Release Voltage :

2.4 VDC

Termination Style :

PC Pin

Product :

Slim Form Relays

Contact Current(DC)-Max :

2 A

ECCN Code :

EAR99

Electrical Life :

1000000 Cycle(s)

Features :

-

Surface Mount :

No

Input Switching Control Type :

Random

Power Consumption :

200 mW

Dielectric Strength Between Open Contacts :

1000 Vrms

Seal Rating :

-

Operating Temperature :

-40°C ~ 85°C

Series :

EC2

Coil Voltage(DC)-Max :

24 V

Relay Form :

2 Form C

Operate Time :

2 ms

Brand :

KEMET

Coil Voltage :

24VDC

RoHS :

Details

Insulation Resistance :

1000000000 Ω

Weight :

1.9 g

Relay Function :

DPDT

Subcategory :

Relays

Manufacturer :

KEMET

Contact Resistance :

50 mΩ

Coil Resistance :

2.88 kOhms

Coil Current(DC)-Max :

0.008 A

Mounting Style :

Through Hole

Product Status :

Active

Coil/Input Supply Type :

DC

Dielectric Strength Between Coil and Contacts :

1500 Vrms

Terminal Length :

0.003 inch

Contact Current(AC)-Max :

0.5 A

Coil Current :

8.3 mA

End Contact Material :

Silver Alloy

Coil Type :

Non Latching

Coil Insulation :

-

Contact Form :

DPDT (2 Form C)

Type :

Miniature

Coil Power :

200 mW

Package :

Tube

Must Operate Voltage :

18 VDC

Coil Release Voltage(DC) :

2.4 V

Body Length or Diameter :

15 mm

Contact Termination :

Solder Pin

Contact Current Rating :

2 A

Physical Dimension :

15mm x 7.5mm x 9.4mm

HTS Code :

8536.41.00.20

Mounting Type :

Through Hole

Coil Operate Voltage(DC) :

18 V

Body Height :

9.4 mm

PCB Hole Count :

8

Contact Voltage(DC)-Max :

30 V

Contact Material :

Silver Alloy, Gold Alloy

Reach Compliance Code :

Unknown

Number of Terminals :

8

Contact Rating (Current) :

2 A

Relay Action :

Momentary

Contact/Output Supply Type :

AC/DC

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Termination Type :

Solder
