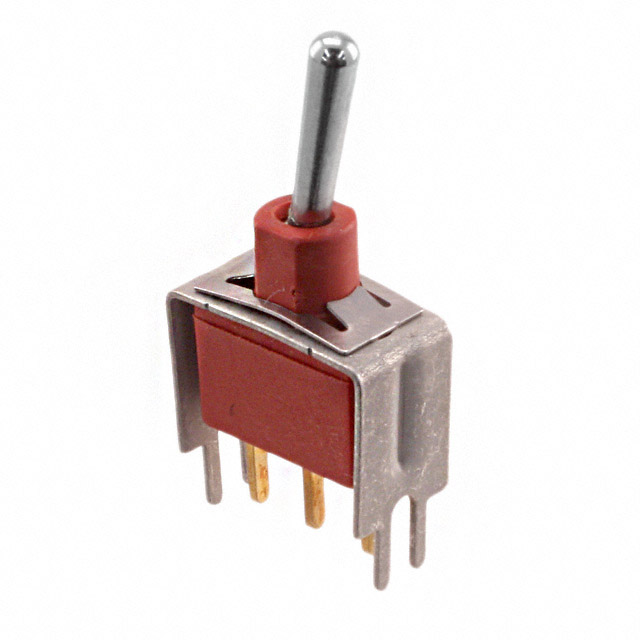

E101SD1V3QE
Or copy the link below:
- Mfr.Part #
- E101SD1V3QE
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 7.5A 125V
- Stock
- 83
- In Stock ：
- 83
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Contact Current Rating :
- 7.5A
- Radiation Hardening :
- No
- Actuator Length :
- 12.70mm
- Actuator Type :
- Standard Round
- Depth :
- 8.13mm
- Mount :
- Brackets, Through Hole
- Packaging :
- Tray
- Switch Function :
- On-On
- Contact Material :
- Silver
- Voltage - Rated DC :
- 28V
- Actuator Material :
- Brass, Chrome Plated
- Current Rating :
- 7.5A
- Max Voltage Rating (DC) :
- 28V
- Series :
- E
- Feature :
- Epoxy Sealed Terminals
- Illumination :
- Non-Illuminated
- Max Voltage Rating (AC) :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Circuit :
- SPDT
- Termination Style :
- PC Pin
- Published :
- 2014
- Operating Temperature :
- -30°C~85°C
- Factory Lead Time :
- 16 Weeks
- Voltage - Rated AC :
- 125V
- Ratings :
- IP57, Waterproof
- Orientation :
- Straight
- Bushing Thread :
- Unthreaded
- Max Current Rating :
- 7.5A
- Current Rating (Amps) :
- 7.5A AC/DC
- Termination :
- PC Pins
- Length :
- 16.26mm
- Electrical Life :
- 40,000 Cycles
- Ingress Protection :
- IP57 - Dust Protected, Waterproof
- Datasheets
- E101SD1V3QE
