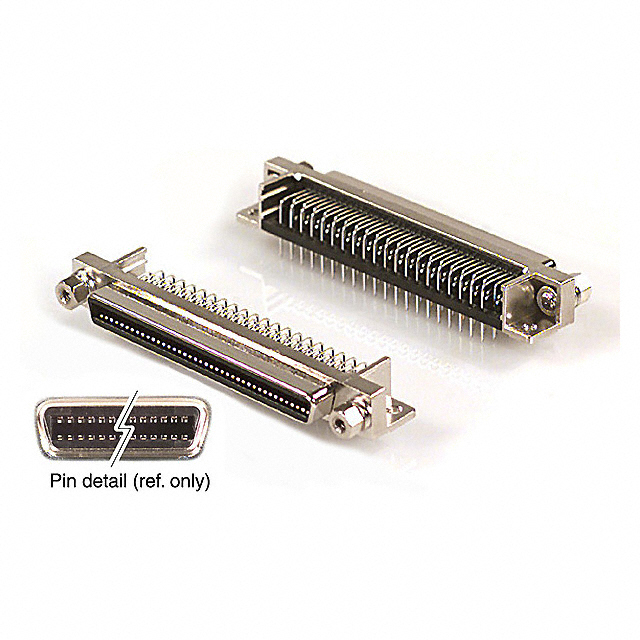

DX10BM-80S

Manufacturer :

Hirose

Product Category :

Centronics Connectors

Body Breadth :

0.354 inch

Flammability Rating :

UL94 V-0

Reference Standard :

UL

Length - Termination :

0.154 inch

Reach Compliance Code :

Unknown

Shell Material :

Steel

Contact Style :

RND PIN-SKT

Mixed Contacts :

No

Housing Color :

Black

RoHS Status :

Non-RoHS Compliant

Filter Feature :

No

Reliability :

COMMERCIAL

Termination :

Solder

DIN Conformance :

No

MIL Conformance :

No

Contact Resistance :

35mOhm

Connector Style :

Outer Shroud Contacts

Empty Shell :

No

Shell Finish :

Nickel

Contact Material :

COPPER ALLOY

Operating Temperature (Min) :

-55°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Dielectric Withstanding Voltage :

400VAC V

JESD-609 Code :

e4

Lead Free :

Contains Lead

Mounting Type :

Panel Mount, Through Hole, Right Angle

Type :

Miniature High Density (HD)

Packaging :

Bulk

Housing Material :

Plastic

Total Number of Contacts :

80

Rated Current (Signal) :

0.5A

Mating Contact Pitch :

0.05 inch

Contact Finish :

Gold

UL Flammability Code :

94V-0

Connector Type :

Receptacle

Published :

2005

Number of Positions :

80

PCB Contact Row Spacing :

1.905 mm

Mount :

Panel, Through Hole

IEC Conformance :

No

Option :

GENERAL PURPOSE

Flange Feature :

Mating Side, Female Screwlock (M2.6)

Operating Temperature (Max) :

85°C

Number of Rows :

2

Number Of PCB Rows :

4

Body Depth :

0.453 inch

Contact Pattern :

RECTANGULAR

Series :

DXM

PCB Contact Pattern :

STAGGERED
