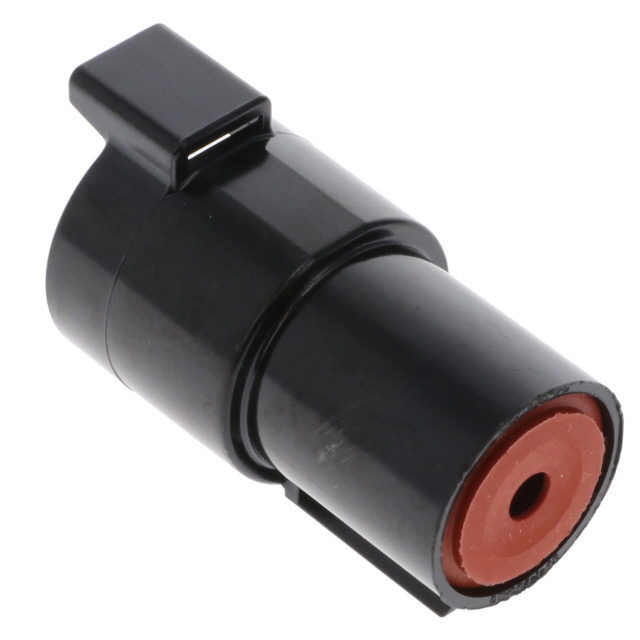

DTHD04-1-4P
Or copy the link below:
- Mfr.Part #
- DTHD04-1-4P
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 1POS INLINE
- Stock
- 372
- In Stock ：
- 372
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Depth :
- 52.53mm
- Contact Plating :
- Nickel
- Contact Type :
- Crimp
- Number of Positions :
- 1 (Power)
- Contact Shape :
- Circular
- Housing Color :
- Black
- Polarized :
- yes
- Mounting Type :
- Free Hanging (In-Line)
- REACH SVHC :
- Unknown
- Contact Material :
- Brass
- Material Flammability Rating :
- UL94 V-0
- Diameter :
- 26.54mm
- Packaging :
- Bulk
- Width :
- 26.543mm
- Fastening Type :
- Latch Lock
- Series :
- DTHD
- Mount :
- Through Hole
- Shielding :
- Unshielded
- Type :
- For Male Pins
- Factory Lead Time :
- 14 Weeks
- Connector Type :
- Receptacle Housing
- Number of Contacts :
- 1
- Orientation :
- Keyed
- Operating Temperature :
- -55°C~125°C
- Contact Size :
- 4 Power
- Shell Material :
- Polyetherimide (PEI)
- Note :
- Contacts Not Included
- Termination :
- Solder
- Hybrid Connector :
- No
- Length :
- 52.5272mm
- Gender :
- Receptacle
- Body Material :
- Thermoplastic
- Published :
- 2008
- Height :
- 29.718mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Current Rating :
- 100A
- Flammability Rating :
- UL94 V-0
- Ingress Protection :
- IP71 - Dust Tight, Water Resistant
- RoHS Status :
- RoHS Compliant
- Datasheets
- DTHD04-1-4P
Receptacle Housing Polyetherimide (PEI) Free Hanging (In-Line) 1 (Power) Positions Bulk Latch Lock Unshielded Contacts Not Included DTHD
DTHD04-1-4P Overview
The product comes in a package of Receptacle Housing.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the DTHD Series.There are many similarities between this part and other For Male Pins products.For mounting this part, a Through Hole socket is required.
DTHD04-1-4P Features
DTHD series
DTHD04-1-4P Applications
There are a lot of TE Connectivity Deutsch Connectors
DTHD04-1-4P Circular Connectors applications.
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
