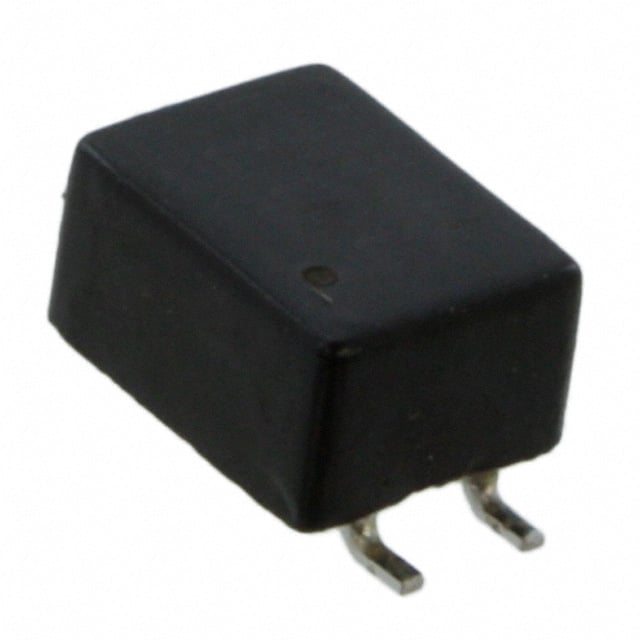

DR331-474BE

Manufacturer :

Bourns, Inc.

Product Category :

Common Mode Chokes

Test Frequency :

100kHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Inductance Tolerance :

25%

Voltage - Rated DC :

80V

Termination :

SMD/SMT

Filter Type :

Signal Line

Depth :

9.3mm

ECCN Code :

EAR99

Current :

500mA

Core Material :

Ferrite

Number of Pins :

4

REACH SVHC :

No SVHC

Packaging :

Cut Tape (CT)

Published :

2006

RoHS Status :

ROHS3 Compliant

Number of Lines :

2

Inductance @ Frequency :

470μH @ 100kHz

Package / Case :

Horizontal, 4 Flat Lead

Approval Agency :

UL

Rated Voltage :

80V

Contact Plating :

Tin

JESD-609 Code :

e3

Packing Method :

Tape and Reel

Voltage - Rated AC :

42V

Operating Temperature :

-40°C~135°C

Mount :

Surface Mount

Length :

7.3mm

Additional Feature :

Tape and Reel

DC Current :

500mA

Lead Pitch :

3.7mm

Military Standard :

Not

Mounting Type :

Surface Mount

Inductance :

470 µH

Number of Functions :

2

Current Rating :

500mA

Size / Dimension :

0.287Lx0.213W 7.30mmx5.40mm

Tolerance :

25%

Height :

4.7mm

Factory Lead Time :

18 Weeks

Max DC Current :

500mA

Series :

DR331

DC Resistance (DCR) (Max) :

280mOhm
