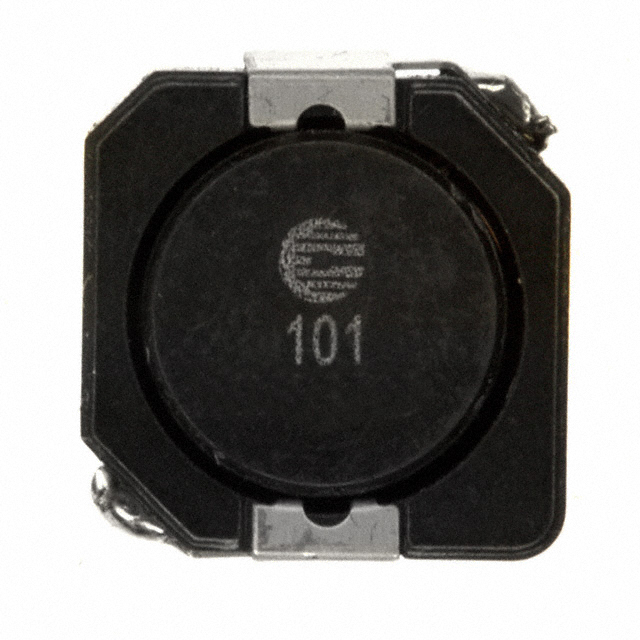

DR1050-101-R
Or copy the link below:
- Mfr.Part #
- DR1050-101-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- FIXED IND 100UH 1.52A 205MOHM SM
- Stock
- 73,147
- In Stock ：
- 73,147
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Fixed Inductors
- Series :
- DR1050
- Size / Dimension :
- 0.413Lx0.406W 10.50mmx10.30mm
- Self Resonant Frequency :
- 1MHz
- Max DC Current :
- 1.45A
- Package / Case :
- Nonstandard
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 5mm
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Surface Mount
- Number of Pins :
- 2
- Inductance Tolerance :
- 30%
- Type :
- Wirewound
- Current Rating :
- 1.52A
- Inductance Frequency - Test :
- 100kHz
- Depth :
- 10.3mm
- Width :
- 10.3mm
- Max Operating Temperature :
- 125°C
- Tolerance :
- ±30%
- DC Current :
- 1.52A
- Shielding :
- Shielded
- Length :
- 10.5mm
- Min Operating Temperature :
- -40°C
- Packaging :
- Tape and Reel (TR)
- Factory Lead Time :
- 7 Weeks
- Lead Free :
- Lead Free
- Operating Temperature :
- -40°C~125°C
- Termination :
- SMD/SMT
- REACH SVHC :
- Unknown
- DC Resistance (DCR) :
- 205mOhm Max
- Composition :
- Wirewound
- Radiation Hardening :
- No
- Published :
- 2011
- Weight :
- 5.000005g
- Current Rating (Amps) :
- 1.52A
- Height Seated (Max) :
- 0.197 5.00mm
- Test Frequency :
- 100kHz
- Current - Saturation :
- 1.45A
- Material - Core :
- Ferrite
- RMS Current (Irms) :
- 1.52A
- Inductance :
- 100μH
- Mount :
- Surface Mount
- Military Standard :
- Not
- Datasheets
- DR1050-101-R
