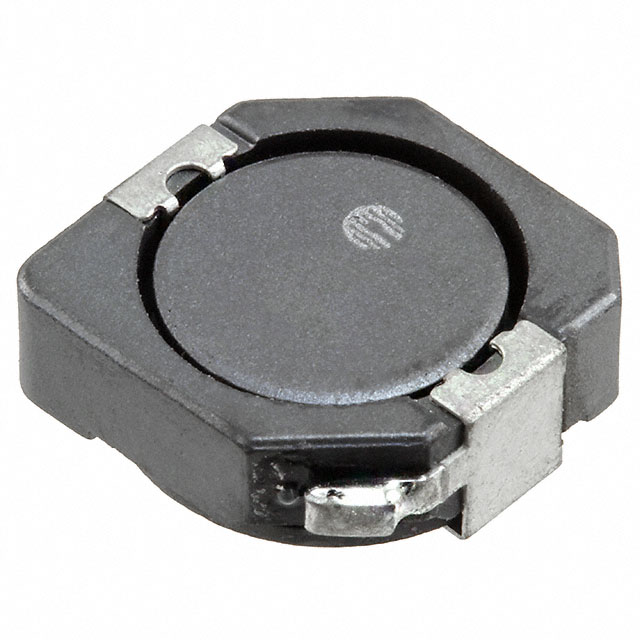

DR1040-101-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Fixed Inductors

Lead Free :

Lead Free

Military Standard :

Not

Height :

4mm

Min Operating Temperature :

-40°C

Current - Saturation :

1.35A

Depth :

10.3mm

REACH SVHC :

No SVHC

Type :

Wirewound

Factory Lead Time :

12 Weeks

DC Resistance (DCR) :

304mOhm Max

Material - Core :

Ferrite

Height Seated (Max) :

0.157 4.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Test Frequency :

100kHz

Series :

DR1040

Current Rating :

1.25A

Radiation Hardening :

No

Shielding :

Shielded

Lead Pitch :

7.7mm

Length :

10.5mm

Packaging :

Tape and Reel (TR)

DC Current :

1.25A

Package / Case :

Nonstandard

Operating Temperature :

-40°C~125°C

Inductance Tolerance :

30%

Termination :

SMD/SMT

Max DC Current :

1.25A

Tolerance :

±30%

Weight :

5.000005g

Inductance :

100μH

RMS Current (Irms) :

1.25A

Self Resonant Frequency :

1MHz

Size / Dimension :

0.413Lx0.406W 10.50mmx10.30mm

Max Operating Temperature :

125°C

Mounting Type :

Surface Mount

Width :

10.287mm

Published :

2007

RoHS Status :

ROHS3 Compliant

Number of Pins :

2

Composition :

Wirewound

Inductance Frequency - Test :

100kHz

Current Rating (Amps) :

1.25A

Mount :

Surface Mount
