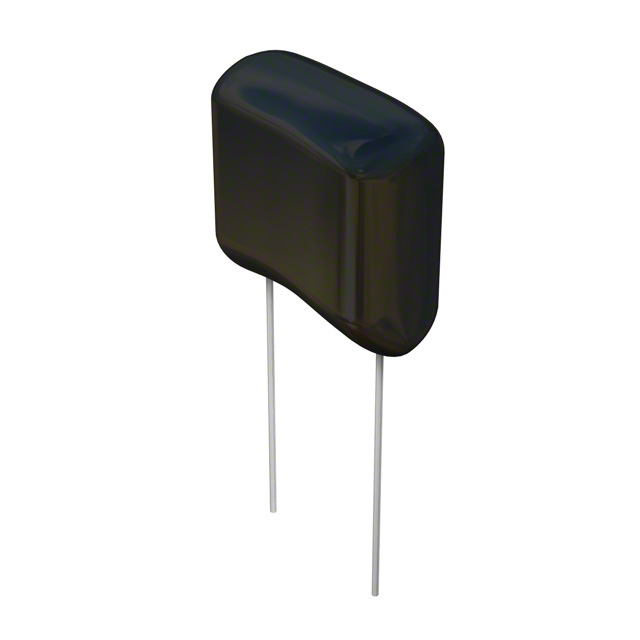

DME10P1K-F
Or copy the link below:
- Mfr.Part #
- DME10P1K-F
- Manufacturer
- Cornell Dubilier Electronics
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 0.1UF 10% 1KVDC RADIAL
- Stock
- 620
- In Stock ：
- 620
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cornell Dubilier Electronics
- Product Category :
- Film Capacitors
- Lead Length :
- 25mm
- Dissipation Factor :
- 1 %
- Voltage - Rated DC :
- 1kV
- Height :
- 20mm
- RoHS Status :
- ROHS3 Compliant
- JESD-609 Code :
- e3
- Voltage :
- 1kV
- Applications :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Size Code :
- 8339
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Depth :
- 10mm
- Published :
- 2006
- Dielectric :
- PET
- Operating Temperature :
- -55°C~125°C
- Number of Terminations :
- 2
- Factory Lead Time :
- 23 Weeks
- Voltage - Rated AC :
- 250V
- Series :
- DME
- Lead Diameter :
- 800 µm
- Terminal Finish :
- Tin (Sn)
- Size / Dimension :
- 0.827Lx0.394W 21.00mmx10.00mm
- Insulation Resistance :
- 300mOhm
- Lead Pitch :
- 17.5mm
- Packaging :
- Bulk
- Lead Spacing :
- 0.689 17.50mm
- Terminal Shape :
- Wire
- Life (Hours) :
- 1000 hours
- Capacitance :
- 0.1μF
- Mount :
- PCB, Through Hole
- ECCN Code :
- EAR99
- Tolerance :
- ±10%
- Package / Case :
- Radial
- Additional Feature :
- RATED AC VOLTAGE (V): 250
- Height Seated (Max) :
- 0.846 21.50mm
- Mounting Type :
- Through Hole
- Capacitor Type :
- FILM CAPACITOR
- Termination :
- PC Pins
- Dielectric Material :
- Polyester, Metallized
- HTS Code :
- 8532.25.00.70
- Datasheets
- DME10P1K-F
DME 0.1μF Film Capacitor ±10% Radial PC Pins 1kV-DC 250V-AC Polyester, Metallized PCB, Through Hole
DME10P1K-F Overview
As a result of the device, there is 300mOhm insulation resistance.Electrical devices with 0.689 17.50mm lead spacing are used in this application.A temperature of -55°C~125°C is suitable for operation of the device.
DME10P1K-F Features
300mOhm insulation resistance
DME10P1K-F Applications
There are a lot of Cornell Dubilier Electronics (CDE)
DME10P1K-F applications of film capacitors.
- Industrial and automotive inverters
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
