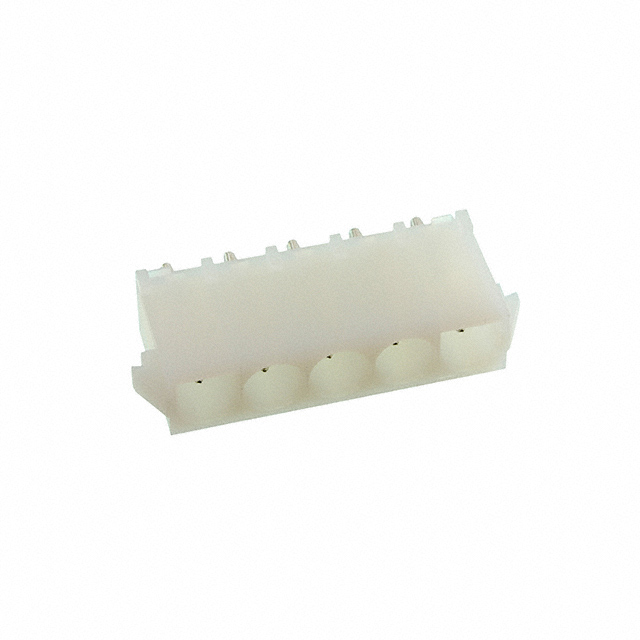

DME-05-S-S
Or copy the link below:
- Mfr.Part #
- DME-05-S-S
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- 6.35MM PCB HEADER, 5 POSITION
- Stock
- 652
- In Stock ：
- 652
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Receptacles, Female Sockets
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Mixed Contacts :
- yes
- Insulation Height :
- 0.550 13.97mm
- Applications :
- GENERAL PURPOSE
- Body Breadth :
- 0.3 inch
- Fastening Type :
- Locking Ramp
- Connector Type :
- Receptacle
- Series :
- DME
- Insulation Color :
- Natural
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Reference Standard :
- UL
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-2
- Plating Thickness :
- FLASH inch
- Packaging :
- Bulk
- Contact Type :
- Female Socket
- Current Rating (Amps) :
- 13A
- Voltage - Rated :
- 600VAC
- Contact Finish - Mating :
- Tin
- Contact Material :
- Brass
- Number of Positions :
- 5
- Number of Positions Loaded :
- All
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Factory Lead Time :
- 9 Weeks
- Contact Shape :
- Circular
- Reliability :
- COMMERCIAL
- Number of Conductors :
- ONE
- Style :
- Board to Board
- Contact Length - Post :
- 0.177 4.50mm
- Operating Temperature :
- -25°C~85°C
- Pitch - Mating :
- 0.250 6.35mm
- Datasheets
- DME-05-S-S
1 Rows Receptacle Solder Brass Through Hole Bulk Tin Polyamide (PA66), Nylon 6/6 5 Positions Female Socket
DME-05-S-S Overview
A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the DME Series of products.It is possible for the device to be used for the application General Purpose.There is no operating temperature for the device.
DME-05-S-S Features
DME series
DME-05-S-S Applications
There are a lot of Adam Tech
DME-05-S-S Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
