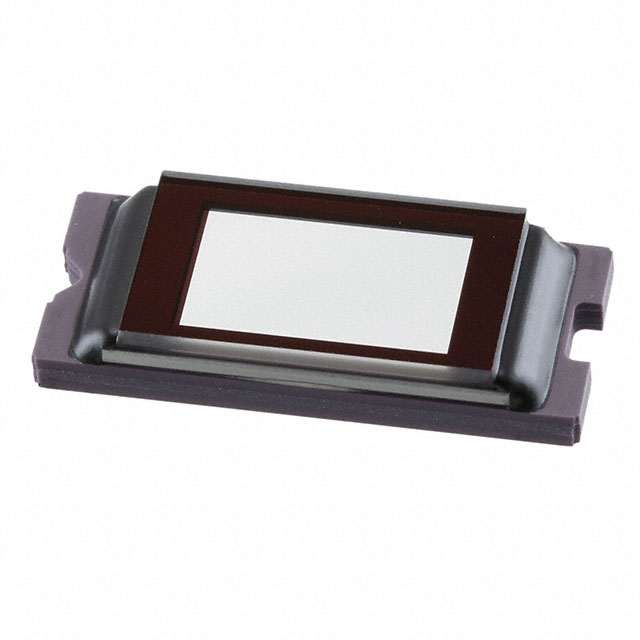

DLP4500NIRFQE
Or copy the link below:
- Mfr.Part #
- DLP4500NIRFQE
- Manufacturer
- Texas Instruments
- Package / Case
- 80-CLCC
- Datasheet
- Download
- Description
- IC DIG MICROMIRROR DEV 80LCCC
- Stock
- 46,070
- In Stock ：
- 46,070
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Texas Instruments
- Product Category :
- Specialized ICs
- Supply Voltage-Max (Vsup) :
- 2.625V
- Additional Feature :
- SEATED HGT-CALCULATED
- Supply Voltage :
- 2.5V
- Number of Functions :
- 1
- HTS Code :
- 8542.39.00.01
- Frequency :
- 120MHz
- Number of Terminations :
- 80
- Thickness :
- 3.3mm
- Max Power Dissipation :
- 250mW
- Surface Mount :
- yes
- RoHS Status :
- ROHS3 Compliant
- Supply Voltage-Min (Vsup) :
- 2.375V
- Width :
- 9.1mm
- Applications :
- 3D, Medical Imaging
- Number of Pins :
- 80
- Max Operating Temperature :
- 70°C
- Lead Free :
- Lead Free
- Operating Supply Voltage :
- 2.5V
- Type :
- Digital Micromirror Device (DMD)
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Supply Current :
- 125mA
- Package / Case :
- 80-CLCC
- Terminal Position :
- BOTTOM
- Radiation Hardening :
- No
- Terminal Pitch :
- 0.75mm
- Packaging :
- Tray
- Length :
- 20.7mm
- Base Part Number :
- DLP4500
- Height :
- 3.58mm
- Datasheets
- DLP4500NIRFQE
DLP4500NIRFQE Documents
Specialized ICs Texas Instruments DLP4500NIRFQE Overview
Specialized ICs Texas Instruments DLP4500NIRFQE is a high-performance Digital Micromirror Device (DMD) encapsulated in an 80-pin CLCC package. This advanced IC is specifically designed for applications requiring precise light control and is capable of operating at a frequency of 120MHz with a typical supply voltage of 2.5V. It supports a wide temperature range from -10°C to 70°C, making it versatile for both industrial and medical imaging applications. The device also features a calculated seated height and requires a minimum supply current of 125mA, ensuring efficient performance in demanding environments.
Key Features
The DLP4500NIRFQE excels in several technical specifications that make it ideal for sophisticated applications:
- Package Type: 80-pin CLCC, providing a compact and reliable housing for the micromirrors.
- Operating Voltage: 2.5V, allowing for integration in low-voltage systems.
- Frequency: 120MHz, high enough to handle advanced imaging tasks.
- Temperature Tolerance: Operates between -10°C and 70°C, suitable for various environmental conditions.
- Current Requirement: 125mA, optimal for maintaining low power consumption while delivering high performance.
Applications
The Specialized ICs Texas Instruments DLP4500NIRFQE is widely used in a range of applications, highlighting its versatility and reliability in professional settings:
- Digital Imaging: Essential for high-quality imaging in medical and industrial fields.
- 3D Scanning: Perfect for creating detailed three-dimensional representations.
- Light Control: Used in projectors and advanced lighting systems to precisely control light output.
- Professional Photography: Critical for enhancing image quality in high-end digital cameras.
- Scientific Research: Invaluable for experiments requiring accurate light manipulation.
