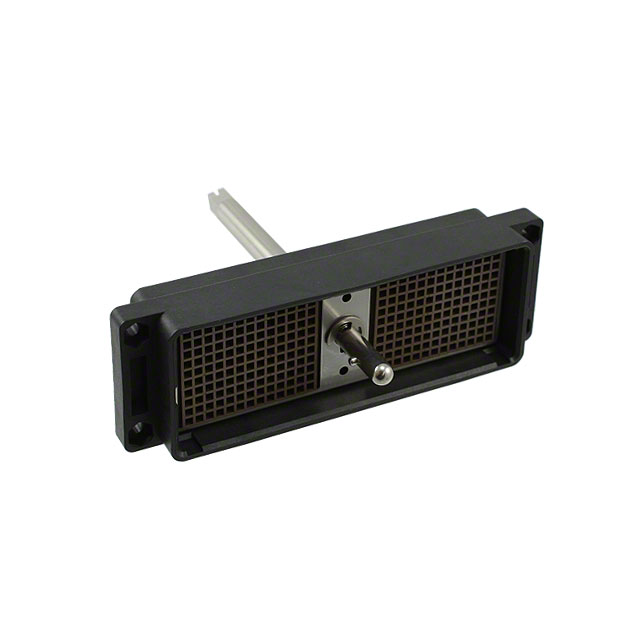

DL5-260P
Or copy the link below:
- Mfr.Part #
- DL5-260P
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN HOUSING 260POS BLK PNL MNT
- Stock
- 99
- In Stock ：
- 99
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- Backplane Connector Housings
- Length :
- 108mm
- Series :
- DL
- Depth :
- 77.36mm
- Gender :
- Male
- Color :
- Black
- Filter Feature :
- No
- Wire Gauge (Min) :
- 18 AWG
- MIL Conformance :
- No
- Max Operating Temperature :
- 105°C
- Packaging :
- Bulk
- Mount :
- Panel
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 9 Weeks
- Accessory Type :
- -
- Contact Design :
- PREASSEM CONN
- Published :
- 2000
- Reference Standard :
- UL
- Note :
- Contacts Not Included
- Brand :
- ITT Cannon
- Material :
- Plastic
- Base Product Number :
- DL5
- Mixed Contacts :
- No
- Lead Free :
- Lead Free
- Connector Type :
- Housing for Non-Gendered Contacts
- Product Type :
- High Speed / Modular Connectors
- Wire Gauge (Max) :
- 42 AWG
- RoHS :
- Details
- Reach Compliance Code :
- Compliant
- Features :
- Actuating Camshaft, Zero Insertion Force (ZIF)
- Package :
- Bulk
- Contact Resistance :
- 15mOhm
- Manufacturer :
- ITT Cannon
- Product Status :
- Active
- DIN Conformance :
- No
- Width :
- 35mm
- Total Number of Contacts :
- 260
- Product :
- Plugs
- Insertion Force-Max :
- ZIF N
- UL Flammability Code :
- 94V-0
- Empty Shell :
- yes
- Product Category :
- High Speed / Modular Connectors
- Feature :
- Actuating Camshaft, Zero Insertion Force (ZIF)
- Contact Style :
- SQ PIN-SKT
- Contact Plating :
- Gold
- Connector Usage :
- PLUG
- Termination Style :
- Crimp
- Housing Material :
- Thermoplastic
- Voltage - Rated :
- 1.2kV
- Connector Style :
- -
- Body Breadth :
- 1.378 inch
- Termination :
- Crimp
- Number of Positions :
- 260
- Polarization Key :
- POLARIZED HOUSING
- IEC Conformance :
- No
- Dielectric Withstanding Voltage :
- 1200VAC V
- Max Current Rating :
- 5A
- Mounting Type :
- Panel Mount
- Orientation :
- Straight
- Current Rating :
- 5A
- Plating Thickness :
- 50μin
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Rated Current (Signal) :
- 5A
- Min Operating Temperature :
- -55°C
- Radiation Hardening :
- No
- Insulation Resistance :
- 5000000000Ohm
- Pitch :
- 0.100 2.54mm
- Contact Pattern :
- RECTANGULAR
- Number of Rows :
- 10
- REACH SVHC :
- No SVHC
- Withdrawl Force-Min :
- ZIF N
- Contact Material :
- Copper
