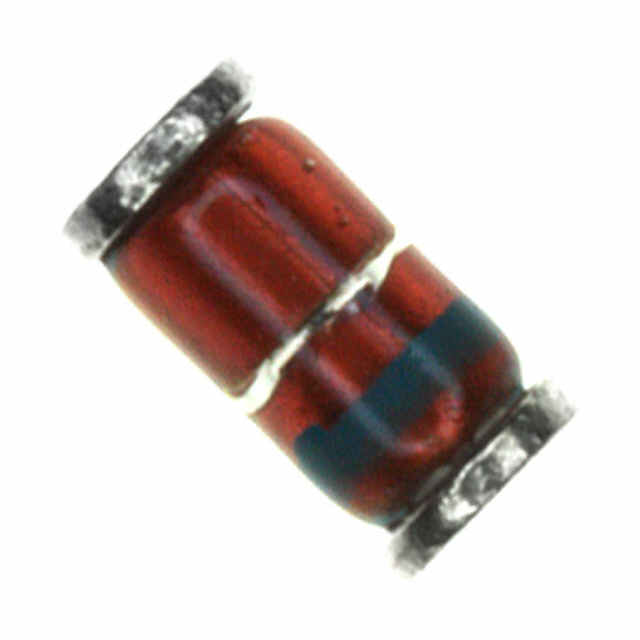

DL4729A-TP
Or copy the link below:
- Mfr.Part #
- DL4729A-TP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- DO-213AB, MELF
- Datasheet
- Download
- Description
- DIODE ZENER 3.6V 1W MELF
- Stock
- 5,995
- In Stock ：
- 5,995
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Diodes - Zener - Single
- Time@Peak Reflow Temperature-Max (s) :
- 10
- Surface Mount :
- yes
- Current - Reverse Leakage @ Vr :
- 100μA @ 1V
- Packaging :
- Tape and Reel (TR)
- Qualification Status :
- Not Qualified
- Configuration :
- Single
- Operating Temperature :
- -65°C~175°C
- Dynamic Impedance-Max :
- 10Ohm
- Polarity :
- Unidirectional
- Terminal Form :
- WRAP AROUND
- Power Dissipation-Max :
- 1W
- Voltage Tol-Max :
- 5%
- Published :
- 2008
- Voltage - Forward (Vf) (Max) @ If :
- 1.2V @ 200mA
- HTS Code :
- 8541.10.00.50
- Pin Count :
- 2
- Number of Elements :
- 1
- Mounting Type :
- Surface Mount
- Terminal Finish :
- Matte Tin (Sn)
- Impedance-Max :
- 10Ohm
- Case Connection :
- Isolated
- Number of Terminations :
- 2
- Base Part Number :
- DL4729
- JESD-30 Code :
- O-LELF-R2
- Voltage - Zener (Nom) (Vz) :
- 3.6V
- Tolerance :
- ±5%
- ECCN Code :
- EAR99
- Package / Case :
- DO-213AB, MELF
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Power - Max :
- 1W
- Diode Element Material :
- SILICON
- Factory Lead Time :
- 8 Weeks
- RoHS Status :
- ROHS3 Compliant
- Reference Voltage :
- 3.6V
- JESD-609 Code :
- e3
- Terminal Position :
- END
- Working Test Current :
- 69mA
- Diode Type :
- ZENER DIODE
- Peak Reflow Temperature (Cel) :
- 260
- Additional Feature :
- High Reliability
- Datasheets
- DL4729A-TP
ZENER DIODE 10Ohm ±5% 100μA @ 1V -65°C~175°C 2 Terminations DO-213AB, MELF
DL4729A-TP Overview
To supply this electrical device, reverse leakage current of 100μA @ 1V is required.5% is the maximum voltage (Tol) that can be supplied.Zener single diode is important to note that during operation, the maximum voltage - Zener (Nom) is reduced to 3.6V.In order to operate this device, the working test voltage should be set to 69mA.When the maximum voltage - Forward (Vf) is supplied for its operation, it reaches 1.2V @ 200mA.
DL4729A-TP Features
reverse leakage current of 100μA @ 1V
100μA @ 1V is the maximum voltage (Tol)
the working test voltage to 69mA
minimal dynamic impedance is 69mA
DL4729A-TP Applications
There are a lot of Micro Commercial Co
DL4729A-TP applications of zener single diodes.
