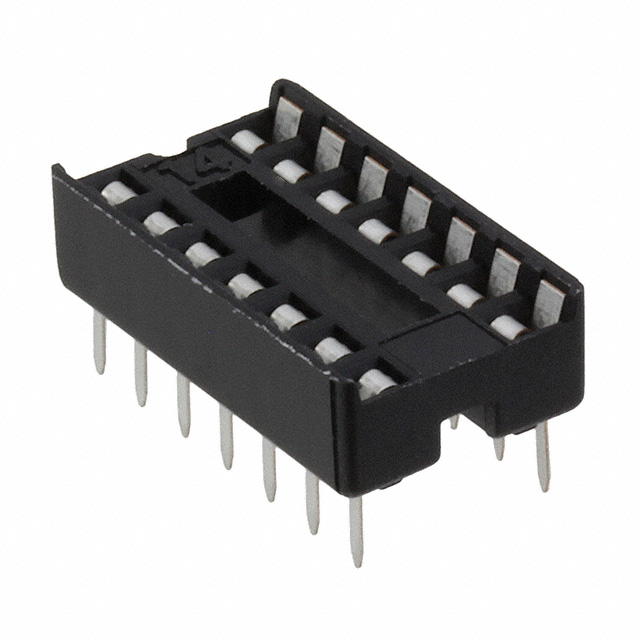

DILB14P-223TLF
Or copy the link below:
- Mfr.Part #
- DILB14P-223TLF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- DIP
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 14POS TIN
- Stock
- 4,944
- In Stock ：
- 4,944
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- IC Sockets
- Lead Length :
- 3.1496mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polyester
- Published :
- 2006
- Depth :
- 10.16mm
- Number of Rows :
- 2
- Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Tin
- Operating Temperature :
- -55°C~105°C
- Max Operating Temperature :
- 105°C
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Orientation :
- Straight
- Number of Positions or Pins (Grid) :
- 14 (2 x 7)
- Radiation Hardening :
- No
- Row Spacing :
- 7.62 mm
- Number of Contacts :
- 14
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Width :
- 15.24mm
- Contact Plating :
- Tin
- Length :
- 17.78mm
- Pitch - Post :
- 0.100 2.54mm
- REACH SVHC :
- No SVHC
- Insulation Resistance :
- 500MOhm
- Package / Case :
- DIP
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Contact Material - Mating :
- COPPER ALLOY
- Packaging :
- Tube
- Factory Lead Time :
- 11 Weeks
- Connector Type :
- DIP, Socket
- Contact Material - Post :
- COPPER ALLOY
- Contact Material :
- Bronze
- Contact Finish - Post :
- Tin
- Feature :
- Open Frame
- Pitch :
- 2.54mm
- Type :
- DIP, 0.3 (7.62mm) Row Spacing
- Pitch - Mating :
- 0.100 2.54mm
- Min Operating Temperature :
- -55°C
- Housing Material :
- Polyamide (PA), Nylon
- Voltage - Rated :
- 200V
- Voltage - Rated AC :
- 200V
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 14
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- 1A
- Current Rating :
- 1A
- Termination Post Length :
- 0.124 3.15mm
- Contact Resistance :
- 30mOhm
- Datasheets
- DILB14P-223TLF
