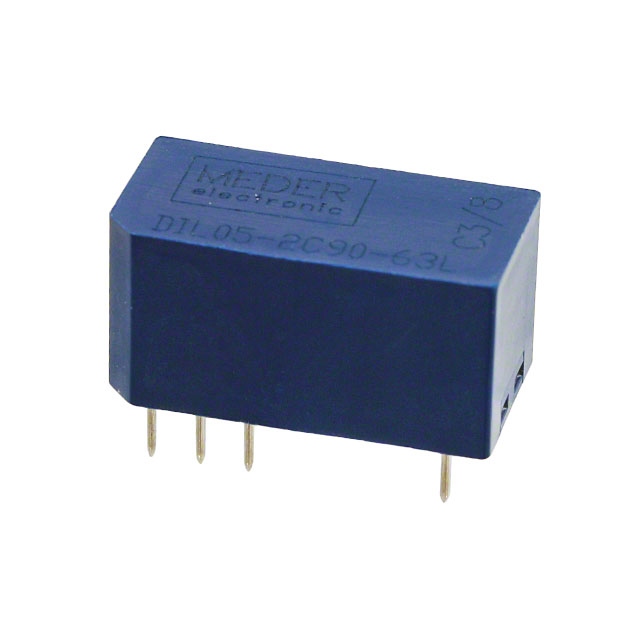

DIL05-2C90-63L

Manufacturer :

Standex Electronics

Product Category :

Reed Relays

Operating Temperature :

-20°C~70°C

Dielectric Strength Between Coil and Contacts :

1500 Vrms

ECCN Code :

EAR99

Coil Power :

167mW

Contact Resistance :

150mOhm

Mount :

Through Hole

Insulation Resistance :

1000000000000Ohm

Termination Style :

PC Pin

Contact Rating (Current) :

250mA

Contact (AC) Max Rating R Load :

.25A@175VAC

Input Switching Control Type :

Random

Coil Resistance :

150Ohm

Contact Form :

DPDT (2 Form C)

PCB Hole Count :

8

JESD-609 Code :

e3

Depth :

10.2mm

Coil Type :

Non Latching

Coil Voltage (DC) :

5V

Relay Action :

Momentary

Series :

DIL

Seal Rating :

Sealed - Fully

Throw Configuration :

DPDT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Coil Current :

33.4mA

Coil/Input Supply Type :

DC

Terminal Finish :

Tin (Sn)

Relay Function :

SPDT

Height :

10.2mm

Contact/Output Supply Type :

AC/DC

Mounting Type :

Through Hole

Physical Dimension :

20.1mm x 10.2mm x 10.2mm

Factory Lead Time :

12 Weeks

Switching Voltage :

175VAC 175VDC -Max

Must Operate Voltage :

3.5VDC

RoHS Status :

ROHS3 Compliant

Packaging :

Tube

Published :

1996

Relay Type :

Reed

Length :

20.1mm

Number of Terminations :

8

Coil Voltage :

5VDC

Operate Time :

0.7ms

Sealing :

WATER PROOF

Release Time :

1.5ms

Package / Case :

DIP

Termination :

PC Pin

Must Release Voltage :

0.75VDC
