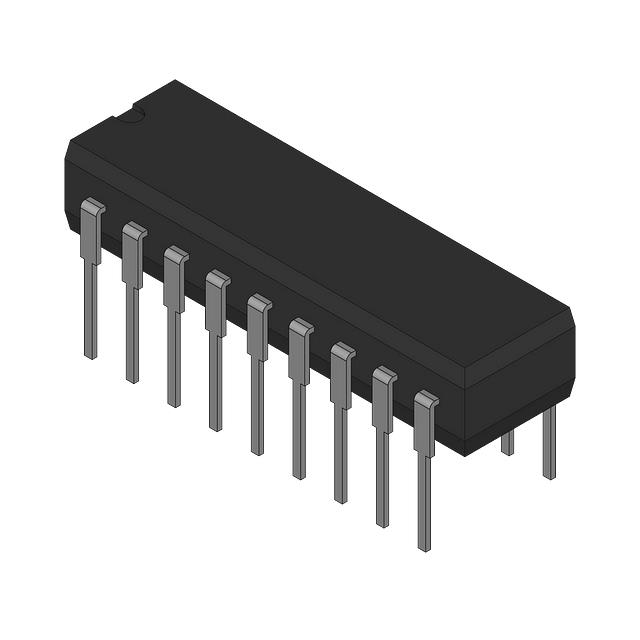

DG528AK
Or copy the link below:
- Mfr.Part #
- DG528AK
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 18-CDIP (0.300, 7.62mm)
- Datasheet
- Download
- Description
- DG528 - ANALOG LATCHABLE MULTIPL
- Stock
- 1,760
- In Stock ：
- 1,760
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Analog Switches, Multiplexers, Demultiplexers
- Min Operating Temperature :
- -55°C
- Current - Leakage (IS(off)) (Max) :
- 1nA
- Max Supply Current :
- 2.5mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tube
- Mounting Type :
- Through Hole
- Propagation Delay :
- 1 μs
- Voltage - Supply, Dual (V±) :
- ±15V
- Turn-Off Delay Time :
- 1 μs
- Channel Capacitance (CS(off), CD(off)) :
- 5pF 25pF
- Charge Injection :
- 4pC
- Switch Time (Ton, Toff) (Max) :
- 1.5μs, 1μs
- Max Supply Voltage :
- 36V
- Operating Supply Voltage :
- 15V
- RoHS Status :
- Non-RoHS Compliant
- Max Operating Temperature :
- 125°C
- Number of Channels :
- 1
- Width :
- 7.62mm
- Number of Pins :
- 18
- Max Dual Supply Voltage :
- 22V
- Factory Lead Time :
- 14 Weeks
- Height :
- 3.94mm
- Number of Circuits :
- 1
- Supplier Device Package :
- 18-CERDIP
- Min Supply Voltage :
- 13V
- On-State Resistance (Max) :
- 400Ohm
- Multiplexer/Demultiplexer Circuit :
- 8:1
- Turn On Delay Time :
- 1.5 μs
- Resistance :
- 400Ohm
- Max Power Dissipation :
- 900mW
- Package / Case :
- 18-CDIP (0.300, 7.62mm)
- Length :
- 22.86mm
- Published :
- 2007
- Operating Temperature :
- -55°C~125°C TA
- Supply Type :
- Dual, Single
- Channel-to-Channel Matching (ΔRon) :
- 24Ohm
- Datasheets
- DG528AK
Analog Switches, Multiplexers, Demultiplexers Analog Devices, Inc. DG528AK Overview
The DG528AK from Analog Devices, Inc. is a high-performance analog switch designed for precision applications in test equipment, data acquisition systems, and communication equipment. This latchable multiplexer allows for efficient routing of analog signals, minimizing propagation delay and cross-talk, which is critical in high-speed data environments. The DG528AK stands out for its robust design and reliability, ensuring consistent performance and durability across various applications.
DG528AK Features
The DG528AK offers a range of features that make it a versatile choice for many circuit designs. It includes low on-resistance, high off-isolation, and a single supply operation that ranges from 15V to 30V. Additionally, the DG528AK provides TTL/CMOS-compatible logic inputs, making it easy to integrate into existing digital interfaces. The latchable feature of the switch ensures that the last input state is held stable, even when the control input is removed, which is ideal for critical signal routing applications where signal integrity is paramount.
DG528AK Applications
- Data Acquisition Systems: The DG528AK can be used to switch between different sensor inputs, allowing for effective channel selection without compromising signal quality.
- Communication Equipment: In multiplexing signal lines, this analog switch ensures clarity and precision, reducing the likelihood of data loss or interference.
- Audio and Video Switching: Ideal for routing audio or video signals in consumer electronics, where maintaining signal integrity is crucial.
- Medical Devices: Reliable and precise switching in medical instrumentation, such as imaging systems, where high fidelity and repeatability are necessary.
- Test and Measurement Equipment: The DG528AK's consistent performance under varying conditions makes it suitable for use in equipment that requires high reliability and accuracy.
