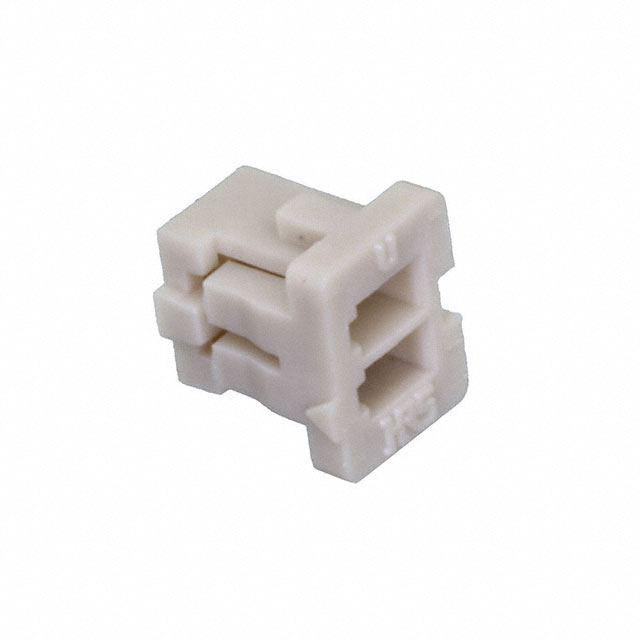

DF13-2S-1.25C

Manufacturer :

Hirose

Product Category :

Rectangular Connector Housings

Mixed Contacts :

No

Number of Conductors :

ONE

Lead Free :

Lead Free

JESD-609 Code :

e3/e4

Dielectric Withstanding Voltage :

500VAC V

Color :

Beige

Lead Pitch :

1.25mm

Number of Rows :

1

Insertion Force-Max :

3 N

RoHS Status :

RoHS Compliant

Operating Temperature (Max) :

85°C

Orientation :

Straight

Filter Feature :

No

Reliability :

COMMERCIAL

Operating Temperature (Min) :

-35°C

IEC Conformance :

No

Housing Material :

Polyamide

Factory Lead Time :

10 Weeks

Option :

GENERAL PURPOSE

Reference Standard :

UL

Insulation Resistance :

500000000Ohm

Withdrawl Force-Min :

0.3 N

Pitch :

0.049 1.25mm

Pbfree Code :

yes

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Type :

Female Socket

Note :

Contacts Not Included

DIN Conformance :

No

Number of Contacts :

2

ECCN Code :

EAR99

Durability :

30 Cycles

Rated Current (Signal) :

1A

Contact Resistance :

30mOhm

UL Flammability Code :

94V-0

HTS Code :

8536.69.40.40

Contact Finish - Mating :

Tin

Connector Type :

Receptacle

Contact Material :

PHOSPHOR COPPER

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Mounting Type :

Free Hanging (In-Line)

Mounting Option 1 :

LOCKING

Contact Termination :

Crimp

Series :

DF13

Packaging :

Bulk
