DEMM-9P-L

Share

Or copy the link below:

Mfr.Part #
DEMM-9P-L
Manufacturer
ITT Cannon
Package / Case
Datasheet
Download
Description
CONN D-SUB PLUG 9POS R/A SLDR
Stock
253
In Stock :
253

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
ITT Cannon
Product Category :
D-Sub Connector Assemblies
Product Type :
D-Sub Connectors - Standard Density
Product Category :
D-Sub Standard Connectors
Terminal Pitch :
2.7432mm
Reliability :
MIL-C-24308
Contact Type :
Signal
Number of Ports :
1
Total Number of Contacts :
9
Radiation Hardening :
No
MIL Conformance :
yes
Mixed Contacts :
No
Number Of PCB Rows :
2
Contact Pattern :
STAGGERED
Contact Style :
RND PIN-SKT
Filter Feature :
No
Body Length or Diameter :
1.213 inch
Connector Type :
D SUBMINIATURE CONNECTOR
Contact Resistance :
55mOhm
Dielectric Material :
Polycyclohexylenedimethylene Terephthalate (PCT)
Connector Style :
D-Sub
Voltage Rating :
--
Number of Terminals :
9
Contact Gender :
Pin (Male)
Mounting Style :
RIGHT ANGLE
Contact Finish Thickness :
50.0µin (1.27µm)
Shell Size, Connector Layout :
1 (DE, E)
Type :
PLUG
Product Status :
Active
Series :
*
Packaging :
Bulk
Contact Finish Termination :
Gold (Au) - with Nickel (Ni) barrier
Color :
Black
JESD-609 Code :
e4
Current Rating (Amps) :
7.5A
Max Current Rating :
7.5 A
Mounting Angle :
RIGHT ANGLE
Body Breadth :
0.494 inch
RoHS Status :
Non-RoHS Compliant
Termination :
Solder
Gender :
Male
Number of Rows :
2
Number of Contacts :
9
Mounting Option 1 :
HOLE .112-.124
Shell Size :
1/E
Features :
Mounting Brackets
Backset Spacing :
--
Mount :
Panel, Through Hole
Mounting Type :
BOARD
Body/Shell Style :
PLUG
Plating :
Chromate, Steel
Manufacturer :
ITT Cannon
RoHS :
Compliant
IEC Conformance :
No
Shell Material, Finish :
Steel, Yellow Chromate Plated Zinc
Shell Finish :
Chromate
Orientation :
RIGHT ANGLE
Termination Style :
Solder Tail
Insulation Material :
GLASS FILLED DIALLYL PHTHALATE
Additional Feature :
STANDARD: MIL-C-24308, PANEL MOUNTABLE
Mating Contact Pitch :
0.109 inch
Max Operating Temperature :
150 °C
Operating Temperature (Min) :
-65°C
Contact Finish - Mating :
Gold Over Nickel
Moisture Sensitivity Level (MSL) :
Not Applicable
Mating Contact Row Spacing :
0.112 inch
Shell Material :
Steel
Brand :
ITT Cannon
Contact Material :
COPPER ALLOY
Insulator Color :
Green
Contact Form :
Machined
Housing Material :
Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Plating :
Gold
Plating Thickness :
50μin
Current Rating :
7.5A
Operating Temperature :
-55°C ~ 150°C
Wire Gauge :
--
PCB Contact Row Spacing :
2.8448 mm
Flange Feature :
Housing/Shell (Unthreaded)
Factory Lead Time :
12 Weeks
Ingress Protection :
--
Number of Positions :
9
Material Flammability Rating :
UL94 V-0
Operating Temperature (Max) :
150°C
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern :
STAGGERED
DIN Conformance :
No
Contact Finish :
Gold
Package :
Bulk
Published :
2012
Empty Shell :
No
UL Flammability Code :
94V-0
Termination Type :
Solder
Body Depth :
0.395 inch
Min Operating Temperature :
-55 °C
Option :
GENERAL PURPOSE
Length - Termination :
0.158 inch
Introducing D-Sub Connector Assemblies ITT Cannon DEMM-9P-L from Chip IC,where excellence meets affordability. This product stands out with its Type:PLUG, Mounting Type:BOARD, Operating Temperature:-55°C ~ 150°C, DEMM-9P-L pinout, DEMM-9P-L datasheet PDF, DEMM-9P-L amp .Beyond D-Sub Connector Assemblies ITT Cannon DEMM-9P-L ,we also offer ICD15S13E4GX00LF, L77SDEH09SOL2RM5, A-DF 25 A/KG-T2S, Our vast inventory has you covered. Contact us now for immediate solutions.

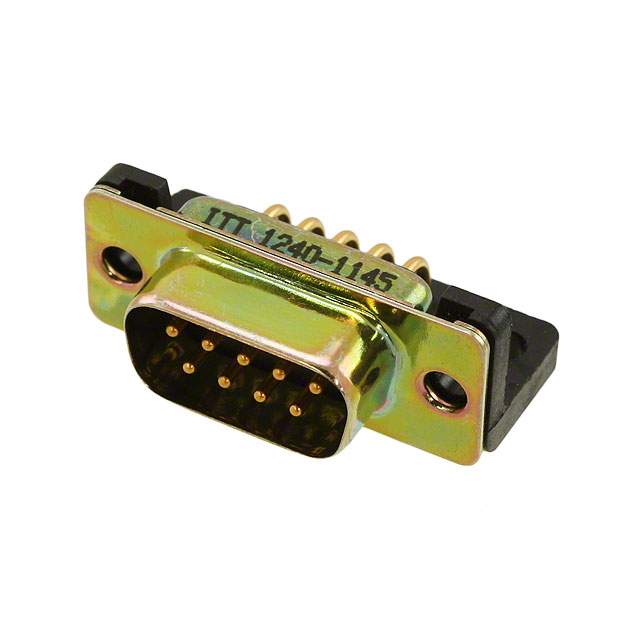

ITT Cannon DEMM-9P-L


* Series D-Sub D SUBMINIATURE CONNECTOR 9-Position Male Signal Solder 1 (DE, E) BOARD COPPER ALLOY Gold Steel, Yellow Chromate Plated Zinc

DEMM9PL Overview


It comes in a D SUBMINIATURE CONNECTOR package.Mounting type is BOARD.To package the product, we use a Bulk case.This product is from the * Series.Then there's STANDARD: MIL-C-24308, PANEL MOUNTABLE, for example.It is best used at temperatures below 150 °C.-55 °C is the minimum temperature this device can operate at.A variety of tasks can be managed through the 1 ports.Mounted by Panel, Through Hole.Device runs at -55°C ~ 150°C Operating Temperature.

DEMM9PL Features


* series


DEMM9PL Applications


There are a lot of ITT Cannon, LLC
DEMM9PL D-Sub Connectors applications.
