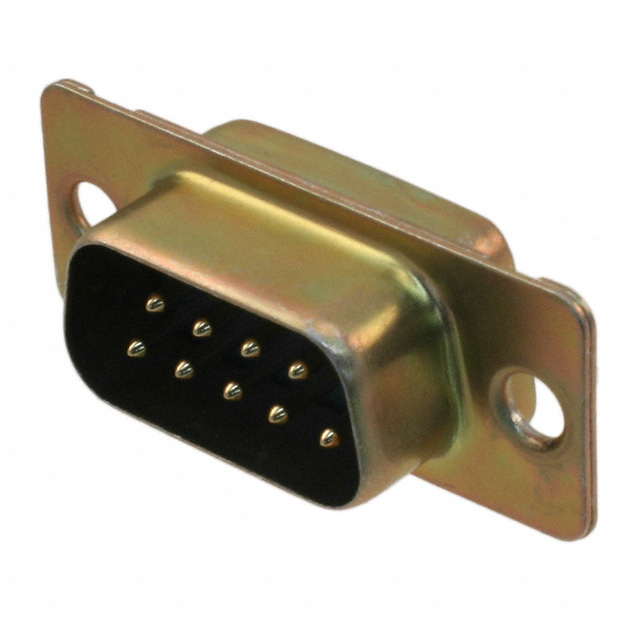

DEM09P
Or copy the link below:
- Mfr.Part #
- DEM09P
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 9POS SLDR CUP
- Stock
- 2,340
- In Stock ：
- 2,340
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Max Operating Temperature :
- 125°C
- Number of Ports :
- 1
- Connector Type :
- Plug, Male Pins
- Shell Material, Finish :
- Steel, Yellow Cadmium Plated
- Orientation :
- Straight
- Contact Plating :
- Gold
- Contact Finish :
- Gold
- Series :
- DM HE501
- Termination :
- Solder Cup
- Connector Style :
- D-Sub
- Number of Positions :
- 9
- Contact Type :
- Signal
- Number of Terminations :
- 9
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 18 Weeks
- Pitch :
- 2.74mm
- Mounting Type :
- Free Hanging (In-Line)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 30.43mm
- Depth :
- 14.85mm
- Shell Size, Connector Layout :
- 1 DE E
- Radiation Hardening :
- No
- Mount :
- Free Hanging, Panel
- Number of Rows :
- 2
- Operating Temperature :
- -55°C~125°C
- Contact Material :
- Brass
- Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 300V
- Current Rating :
- 7.5A
- Number of Contacts :
- 9
- Dielectric Material :
- Thermoplastic
- Flange Feature :
- Housing/Shell (Unthreaded)
- Packaging :
- Tray
- Current Rating (Amps) :
- 7.5A
- Min Operating Temperature :
- -55°C
- Housing Material :
- Thermoplastic
- Datasheets
- DEM09P
DEM09P Documents
DM HE501 Series D-Sub Plug, Male Pins 9-Position Male Signal Solder Cup 1 DE E Free Hanging (In-Line) Brass Gold Steel, Yellow Cadmium Plated
DEM09P Overview
It comes in Plug, Male Pins packaging.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Tray case for packaging the product.This product is part of the DM HE501 Series.You should use it when it's below 125°C.A minimum temperature of -55°C is required for the operation of this device.A variety of tasks can be managed through its 1 ports.Free Hanging, Panel is used to mount the part.There are no terminations on the chip.In this case, the device operates at -55°C~125°C Operating Temperature.
DEM09P Features
9 basic kinds of terminations
DM HE501 series
DEM09P Applications
There are a lot of Amphenol ICC (FCI)
DEM09P D-Sub Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
