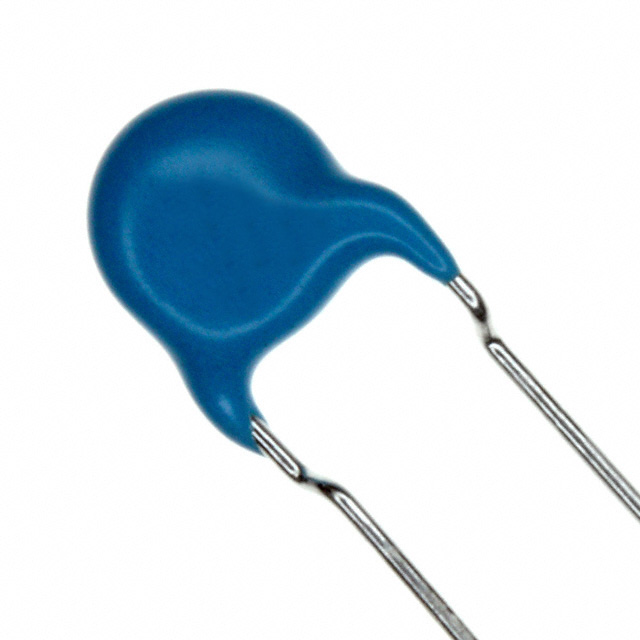

DEA1X3D470JA2B
Or copy the link below:
- Mfr.Part #
- DEA1X3D470JA2B
- Manufacturer
- Murata Electronics
- Package / Case
- Radial, Disc
- Datasheet
- Download
- Description
- CAP CER 47PF 2KV SL RADIAL
- Stock
- 35,040
- In Stock ：
- 35,040
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Murata Electronics
- Product Category :
- Ceramic Capacitors
- Voltage - Rated DC :
- 2kV
- Multilayer :
- No
- Tolerance :
- ±5%
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Lead Pitch :
- 5mm
- Series :
- DEA
- Lead Length :
- 25mm
- Terminal Shape :
- Wire
- Temperature Characteristics Code :
- SL
- Size Code :
- 2420
- HTS Code :
- 8532.23.00.60
- Operating Temperature :
- -25°C~125°C
- Package / Case :
- Radial, Disc
- Radiation Hardening :
- No
- Lead Style :
- Formed Leads
- Feature :
- High Voltage
- Mount :
- Through Hole
- Applications :
- GENERAL PURPOSE
- Composition :
- Ceramic
- RoHS Status :
- RoHS Compliant
- Temperature Coefficient :
- SL
- Depth :
- 5mm
- Capacitance :
- 47pF
- Lead Diameter :
- 600 µm
- REACH SVHC :
- No SVHC
- Height Seated (Max) :
- 0.354 9.00mm
- Lead/Base Style :
- Formed Leads
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole
- Lifecycle Status :
- DISCONTINUED (Last Updated: 5 months ago)
- Size / Dimension :
- 0.236Dia 6.00mm
- Number of Terminations :
- 2
- Rated (DC) Voltage (URdc) :
- 2000V
- Lead Spacing :
- 0.197 5.00mm
- Packaging :
- Bulk
- Termination :
- Radial
- Datasheets
- DEA1X3D470JA2B
DEA1X3D470JA2B Documents
DEA 47pF Ceramic Capacitor ±5% SL 0.236Dia 6.00mm -25°C~125°C 2 Terminations High Voltage Through Hole Radial, Disc
DEA1X3D470JA2B Overview
Ceramic capacitor is 0.236Dia 6.00mm in size/dimension for this device.Generally, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance with respect to temperature changes, and it is equal to SL.A voltage of 2kV is required to operate this capacitor.A capacitor's lead pitch is the distance between adjacent threads, and it is 5mm.
DEA1X3D470JA2B Features
a size/dimension of 0.236Dia 6.00mm
with SL being the highest temperature coefficient
with the voltage - Rated DC of 2kV
DEA1X3D470JA2B Applications
There are a lot of Murata Electronics
DEA1X3D470JA2B applications of ceramic capacitors.
- General electronic equipment
- Mobile devices
- Servers, PCs, tablets
- Power supply circuit
