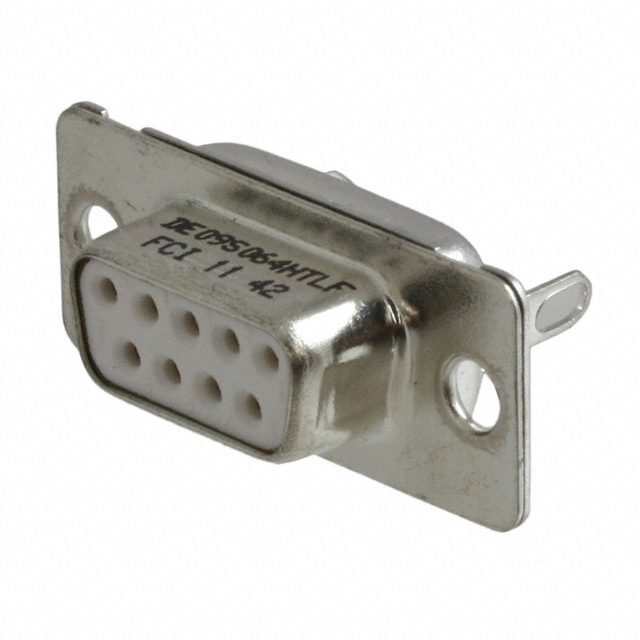

DE09S064HTLF
Or copy the link below:
- Mfr.Part #
- DE09S064HTLF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS SLDR CUP
- Stock
- 71
- In Stock ：
- 71
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Length :
- 30.43mm
- Feature :
- Shielded
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 125°C
- Mount :
- Free Hanging, Panel
- Max Voltage Rating (AC) :
- 1kV
- REACH SVHC :
- No SVHC
- Current Rating :
- 5A
- Dielectric Material :
- Thermoplastic
- Factory Lead Time :
- 10 Weeks
- Number of Rows :
- 2
- Contact Material :
- COPPER ALLOY
- Material Flammability Rating :
- UL94 V-0
- Series :
- D
- Termination :
- Solder Cup
- Package / Case :
- Metal
- Housing Material :
- Thermoplastic
- Number of Positions :
- 9
- Working Voltage :
- 350V
- Gender :
- Receptacle
- Contact Plating :
- Gold
- Connector Style :
- D-Sub
- Flange Feature :
- Housing/Shell (Unthreaded)
- Shell Material, Finish :
- Steel, Tin Plated
- Orientation :
- Straight
- Packaging :
- Bulk
- Material :
- Steel
- Voltage - Rated :
- 300V
- Mounting Type :
- Free Hanging (In-Line)
- Body Material :
- Metal
- Number of Ports :
- 1
- Operating Temperature :
- -55°C~125°C
- Min Operating Temperature :
- -55°C
- Current Rating (Amps) :
- 5A
- Number of Contacts :
- 9
- Contact Type :
- Signal
- Max Supply Voltage (AC) :
- 1kV
- Shell Size, Connector Layout :
- 1 DE E
- Number of Terminations :
- 9
- Contact Finish Thickness :
- Flash
- Contact Finish :
- Gold
- Pitch :
- 2.74mm
- Flammability Rating :
- UL94 V-0
- Body Plating :
- Tin
- Color :
- Natural
- Width :
- 12.17mm
- Connector Type :
- Receptacle, Female Sockets
- Contact Resistance :
- 10MOhm
- Datasheets
- DE09S064HTLF
DE09S064HTLF Documents
D Series D-Sub Receptacle, Female Sockets 9-Position Receptacle Signal Solder Cup 1 DE E Free Hanging (In-Line) Copper Alloy Gold Steel, Tin Plated
DE09S064HTLF Overview
Packaging for this item is Receptacle, Female Sockets.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the D Series.Use it when the temperature is below 125°C.Temperatures below -55°C are required for this device to operate.There is a device enclosed in the packaging with the Metal.The device has 1 ports for managing a variety of tasks.It is more powerful in many ways due to its Shielded feature.It is mounted by Free Hanging, Panel.It has terminations of 9.It operates at an operating temperature of -55°C~125°C.
DE09S064HTLF Features
9 basic kinds of terminations
D series
DE09S064HTLF Applications
There are a lot of Amphenol ICC (FCI)
DE09S064HTLF D-Sub Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
