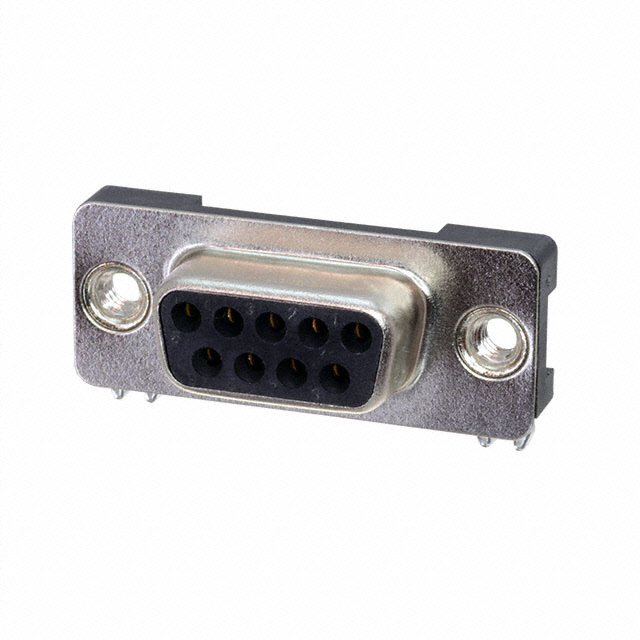

DE09-SS-24
Or copy the link below:
- Mfr.Part #
- DE09-SS-24
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9P SMD R/A SLDR
- Stock
- 39,700
- In Stock ：
- 39,700
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Contact Material :
- Phosphor Bronze
- Connector Style :
- D-Sub
- Voltage - Rated :
- 300VAC
- Operating Temperature :
- -55°C~105°C
- Connector Type :
- Receptacle, Female Sockets
- Contact Finish :
- Gold
- Mounting Option 1 :
- LOCKING
- Flange Feature :
- Housing/Shell (4-40)
- Termination :
- Solder
- Factory Lead Time :
- 9 Weeks
- Number of Positions :
- 9
- Dielectric Withstanding Voltage :
- 1000VAC V
- Number Of PCB Rows :
- 1
- Total Number of Contacts :
- 9
- Series :
- DSS
- Packaging :
- Tray
- Contact Style :
- RND PIN-SKT
- Reference Standard :
- UL, CSA
- Feature :
- Board Lock
- Shell Size, Connector Layout :
- 1 DE E
- Number of Rows :
- 2
- Shell Material, Finish :
- Steel, Nickel Plated
- PCB Contact Pattern :
- RECTANGULAR
- Color :
- Black
- Contact Pattern :
- STAGGERED
- Dielectric Material :
- Thermoplastic, Glass Filled
- Reliability :
- COMMERCIAL
- Mounting Type :
- Surface Mount, Right Angle
- Terminal Pitch :
- 1.3716mm
- Insulation Resistance :
- 5000000000Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 5A
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- DE09-SS-24
DSS Series D-Sub Receptacle, Female Sockets 9-Position Solder 1 DE E Surface Mount, Right Angle Phosphor Bronze Gold Steel, Nickel Plated
DE09-SS-24 Overview
The product is packaged in Receptacle, Female Sockets.Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the DSS Series, it can be found in this category.With its Board Lock feature, it is more powerful in many ways.The device is operating at -55°C~105°C Operating Temperature.
DE09-SS-24 Features
DSS series
DE09-SS-24 Applications
There are a lot of Adam Tech
DE09-SS-24 D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
