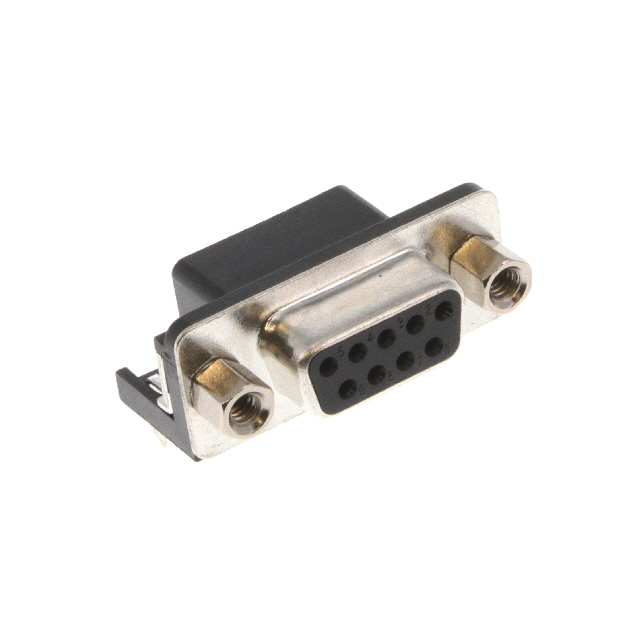

DE09-SL-25
Or copy the link below:
- Mfr.Part #
- DE09-SL-25
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS R/A SLDR
- Stock
- 4,321
- In Stock ：
- 4,321
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Operating Temperature :
- -55°C~105°C
- Max Current Rating :
- 5A
- Body Plating :
- Tin
- Contact Style :
- RND PIN-SKT
- Total Number of Contacts :
- 9
- Contact Material :
- COPPER ALLOY
- Number Of PCB Rows :
- 2
- Reference Standard :
- UL, CSA
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Plating Thickness :
- FLASH inch
- Mount :
- Through Hole
- Shell Finish :
- Tin
- Packaging :
- Tray
- Number of Ports :
- 1
- Material :
- Metal
- Housing Material :
- Steel
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole, Right Angle
- Shell Size, Connector Layout :
- 1 DE E
- Max Voltage Rating (AC) :
- 250V
- Length :
- 30.81mm
- Series :
- DSL
- Connector Style :
- D-Sub
- Pitch :
- 2.77mm
- Depth :
- 18.3mm
- Number of Rows :
- 2
- Lead Free :
- Lead Free
- Gender :
- FEMALE
- Voltage - Rated :
- 250VAC
- Contact Pattern :
- STAGGERED
- Termination :
- Solder
- Additional Feature :
- RoHS Compliant
- RoHS Status :
- ROHS3 Compliant
- Current Rating (Amps) :
- 3A
- Factory Lead Time :
- 9 Weeks
- Contact Finish :
- Gold
- PCB Contact Pattern :
- STAGGERED
- Reliability :
- COMMERCIAL
- Color :
- Black
- Connector Type :
- Receptacle, Female Sockets
- Insulation Resistance :
- 5000000000Ohm
- Feature :
- Board Lock
- Height :
- 12.55mm
- Shell Material, Finish :
- Steel, Tin Plated
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Backset Spacing :
- 0.319 (8.10mm)
- Contact Form :
- Stamped
- Number of Positions :
- 9
- Datasheets
- DE09-SL-25
DE09-SL-25 Documents
DSL Series D-Sub Receptacle, Female Sockets 9-Position Female Solder 1 DE E Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated
DE09-SL-25 Overview
A Receptacle, Female Sockets package is included with it.Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the DSL Series.Furthermore, there are other features such as ROHS COMPLIANT, to name a few.With 1 ports, it is capable of managing a wide range of tasks.In many ways, Board Lock makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -55°C~105°C.
DE09-SL-25 Features
DSL series
DE09-SL-25 Applications
There are a lot of Adam Tech
DE09-SL-25 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
