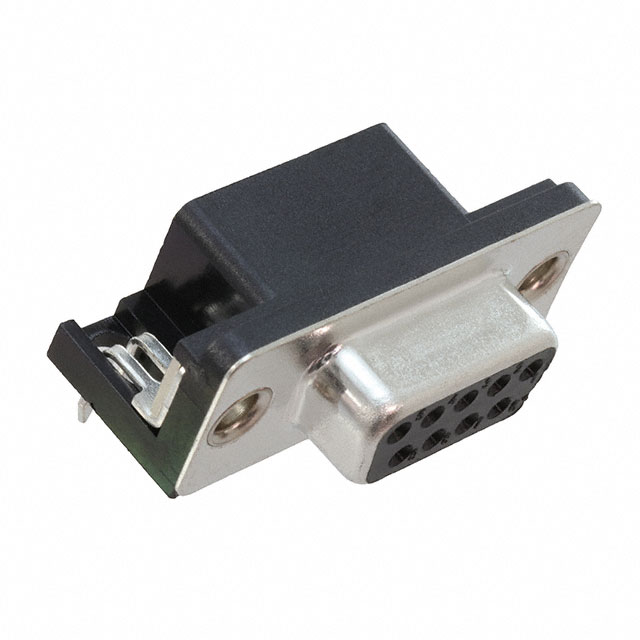

DE09-SL-24

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

Shell Material, Finish :

Steel, Tin Plated

Material Flammability Rating :

UL94 V-0

Total Number of Contacts :

9

JESD-609 Code :

e4

Flange Feature :

Housing/Shell (4-40)

Current Rating (Amps) :

3A

Contact Pattern :

STAGGERED

Mounting Type :

Through Hole, Right Angle

Dielectric Withstanding Voltage :

1000VAC V

Insulation Resistance :

1000000000Ohm

Feature :

Board Lock

Connector Style :

D-Sub

Contact Style :

RND PIN-SKT

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Plating Thickness :

FLASH inch

Color :

Black

Contact Form :

Stamped

Operating Temperature :

-20°C~85°C

Termination :

Solder

MIL Conformance :

No

Option :

GENERAL PURPOSE

Shell Finish :

Tin

IEC Conformance :

No

Empty Shell :

No

Orientation :

RIGHT ANGLE

Mixed Contacts :

No

Reliability :

COMMERCIAL

Series :

DSL

Contact Material :

COPPER ALLOY

Number Of PCB Rows :

2

RoHS Status :

ROHS3 Compliant

Number of Rows :

2

Shell Size, Connector Layout :

1 DE E

Additional Feature :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

9

PCB Contact Pattern :

STAGGERED

Factory Lead Time :

9 Weeks

Contact Finish :

Gold

Material :

Metal

Packaging :

Tray

Connector Type :

Receptacle, Female Sockets

Reference Standard :

UL, CSA

Voltage - Rated :

250VAC

Gender :

FEMALE

Filter Feature :

No

DIN Conformance :

No

Backset Spacing :

0.319 (8.10mm)

Mounting Option 2 :

THREADED INSERT

Body Depth :

0.5 inch

Lead Free :

Lead Free
