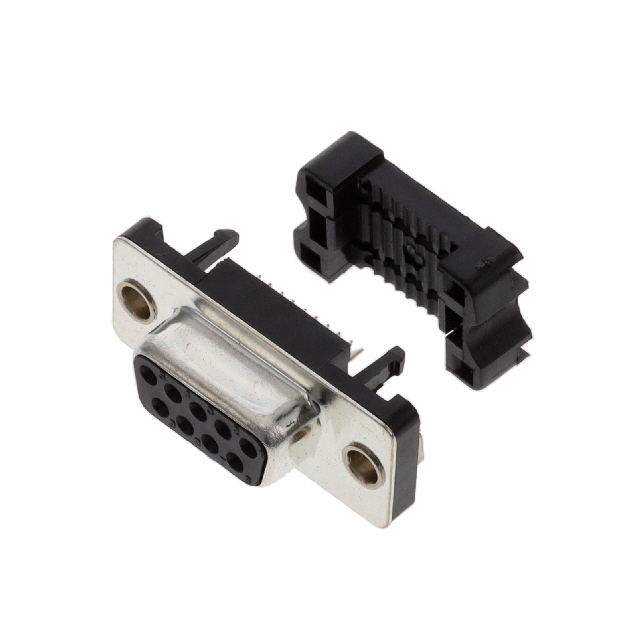

DE09-SF-M2
Or copy the link below:
- Mfr.Part #
- DE09-SF-M2
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS IDC
- Stock
- 399
- In Stock ：
- 399
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Total Number of Contacts :
- 9
- Flange Feature :
- Housing/Shell (4-40)
- Wire Gauge :
- 28-30 AWG
- Series :
- DSF
- Packaging :
- Tray
- Reliability :
- COMMERCIAL
- Contact Style :
- RND PIN-SKT
- Color :
- Black
- Reference Standard :
- UL, CSA
- Contact Design :
- PREASSEM CONN
- Insulation Resistance :
- 5000000000Ohm
- Gender :
- FEMALE
- Connector Style :
- D-Sub
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Mounting Type :
- Free Hanging (In-Line)
- Voltage - Rated :
- 250VAC
- Shell Material, Finish :
- Steel, Tin Plated
- Factory Lead Time :
- 9 Weeks
- Contact Material :
- Phosphor Bronze
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Contact Pattern :
- STAGGERED
- Contact Finish Thickness :
- Flash
- Contact Finish :
- Gold
- Operating Temperature :
- -65°C~125°C
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Dielectric Withstanding Voltage :
- 1000VAC V
- Connector Type :
- Receptacle, Female Sockets
- Number of Positions :
- 9
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- IDC, Ribbon Cable
- Current Rating (Amps) :
- 5A
- Mounting Option 2 :
- LOCKING
- Shell Size, Connector Layout :
- 1 DE E
- Datasheets
- DE09-SF-M2
DSF Series D-Sub Receptacle, Female Sockets 9-Position Female IDC, Ribbon Cable 1 DE E Free Hanging (In-Line) Phosphor Bronze Gold Steel, Tin Plated
DE09-SF-M2 Overview
Packaging is in the form of Receptacle, Female Sockets.The mounting type of the device is Free Hanging (In-Line).A Tray case is used to package the product.A product of the DSF Series, it belongs to the range of products of that series.-65°C~125°C Operating Temperature is the default operating temperature for the device.
DE09-SF-M2 Features
DSF series
DE09-SF-M2 Applications
There are a lot of Adam Tech
DE09-SF-M2 D-Sub Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
