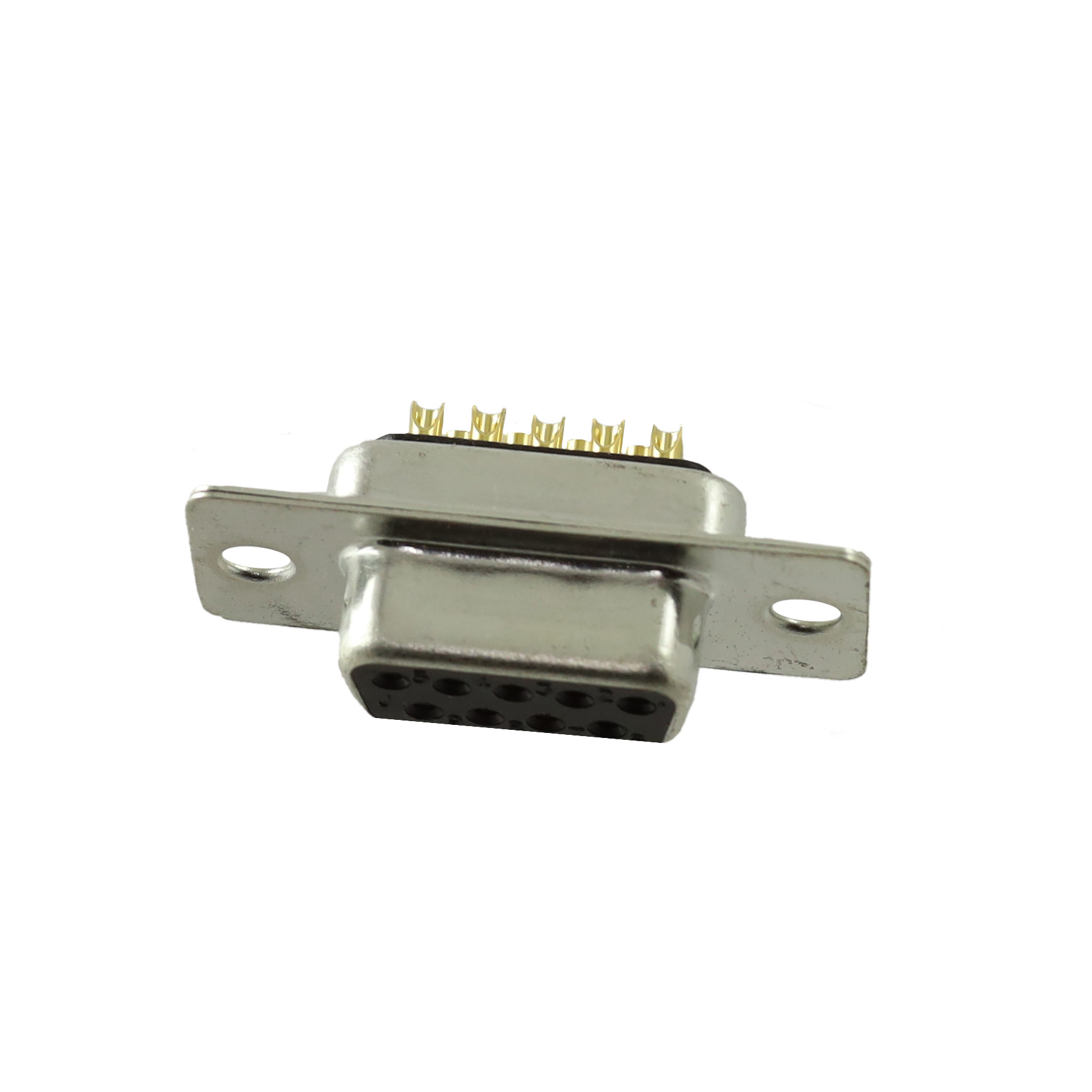

DE09-SD-MC
Or copy the link below:
- Mfr.Part #
- DE09-SD-MC
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS SLDR CUP
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Plating Thickness :
- FLASH inch
- Contact Finish :
- Gold
- Contact Style :
- RND PIN-SKT
- Current Rating (Amps) :
- 5A
- Connector Style :
- D-Sub
- Reference Standard :
- UL, CSA
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Total Number of Contacts :
- 9
- Termination :
- Solder Cup
- Operating Temperature (Min) :
- -65°C
- Contact Material :
- COPPER ALLOY
- Shell Material, Finish :
- Steel, Tin Plated
- Contact Design :
- PREASSEM CONN
- Additional Feature :
- RoHS Compliant
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Flange Feature :
- Housing/Shell (Unthreaded)
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Receptacle, Female Sockets
- Shell Size, Connector Layout :
- 1 DE E
- Color :
- Black
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 9 Weeks
- Mounting Option 2 :
- LOCKING
- Material Flammability Rating :
- UL94 V-0
- Shell Finish :
- Tin
- Series :
- DSD
- Contact Pattern :
- STAGGERED
- Number of Rows :
- 2
- Dielectric Withstanding Voltage :
- 1000VAC V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Free Hanging (In-Line)
- Number of Positions :
- 9
- Insulation Resistance :
- 5000000000Ohm
- Voltage - Rated :
- 250VAC
- Contact Form :
- Machined
- Packaging :
- Tray
- Datasheets
- DE09-SD-MC
DE09-SD-MC Documents
DSD Series D-Sub Receptacle, Female Sockets 9-Position Solder Cup 1 DE E Free Hanging (In-Line) Copper Alloy Gold Steel, Tin Plated
DE09-SD-MC Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Tray case is used.It belongs to the DSD Series of products.In addition, there are other features such as ROHS COMPLIANT, to mention only a few.
DE09-SD-MC Features
DSD series
DE09-SD-MC Applications
There are a lot of Adam Tech
DE09-SD-MC D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
