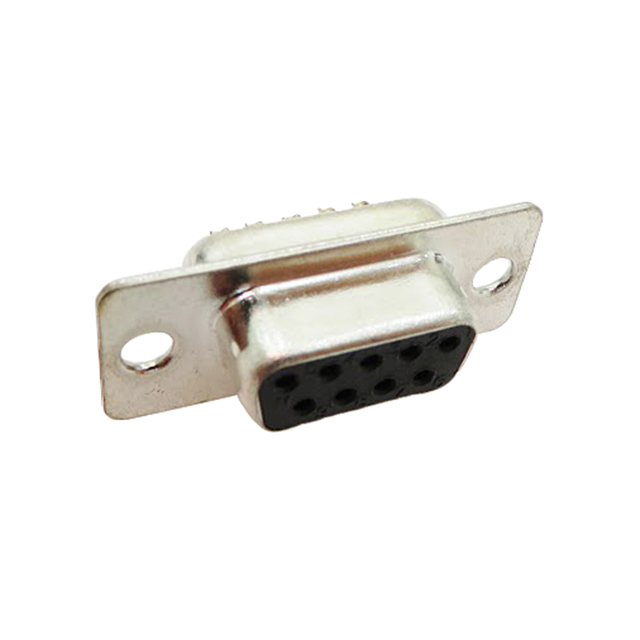

DE09-SD
Or copy the link below:
- Mfr.Part #
- DE09-SD
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS SLDR CUP
- Stock
- 734
- In Stock ：
- 734
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Factory Lead Time :
- 9 Weeks
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -20°C~85°C
- Flange Feature :
- Housing/Shell (Unthreaded)
- Reference Standard :
- UL, CSA
- Total Number of Contacts :
- 9
- Packaging :
- Tray
- Number of Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Free Hanging (In-Line)
- Shell Material, Finish :
- Steel, Tin Plated
- Gender :
- FEMALE
- Contact Material :
- COPPER ALLOY
- Contact Finish :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Option 1 :
- #4-40
- Contact Pattern :
- STAGGERED
- Reliability :
- COMMERCIAL
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Dielectric Withstanding Voltage :
- 1000VAC V
- Insulation Resistance :
- 5000000000Ohm
- Mounting Option 2 :
- CLINCH NUT
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Current Rating (Amps) :
- 3A
- Voltage - Rated :
- 250VAC
- Contact Form :
- Stamped
- Color :
- Black
- Series :
- DSD
- Number of Positions :
- 9
- Connector Type :
- Receptacle, Female Sockets
- Contact Style :
- RND PIN-SKT
- Connector Style :
- D-Sub
- Shell Size, Connector Layout :
- 1 DE E
- Termination :
- Solder Cup
- Contact Finish Thickness :
- Flash
- Datasheets
- DE09-SD
DSD Series D-Sub Receptacle, Female Sockets 9-Position Female Solder Cup 1 DE E Free Hanging (In-Line) Copper Alloy Gold Steel, Tin Plated
DE09-SD Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Tray case is used.It belongs to the DSD Series of products.The device runs in -20°C~85°C Operating Temperature.
DE09-SD Features
DSD series
DE09-SD Applications
There are a lot of Adam Tech
DE09-SD D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
