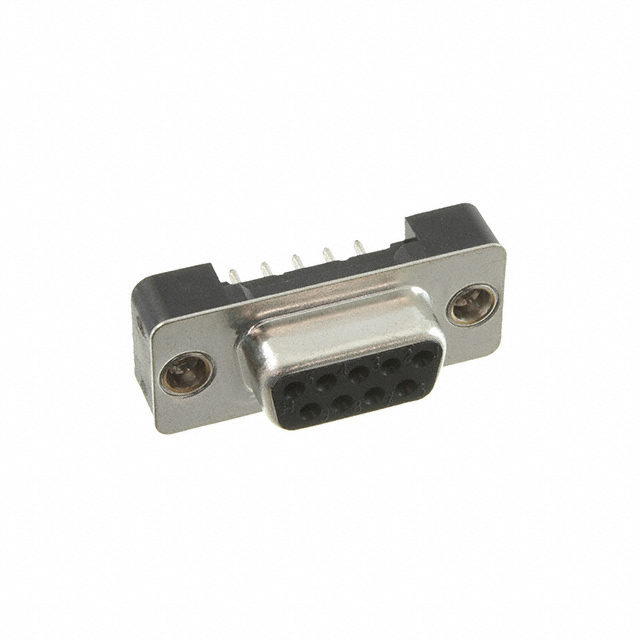

DE09-SA-M2
Or copy the link below:
- Mfr.Part #
- DE09-SA-M2
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS VERT SLDR
- Stock
- 46
- In Stock ：
- 46
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Mounting Type :
- Through Hole
- Gender :
- FEMALE
- Series :
- DSA
- Shell Finish :
- Tin
- Current Rating (Amps) :
- 1A
- Number of Positions :
- 9
- Mounting Option 1 :
- LOCKING
- Reliability :
- COMMERCIAL
- Contact Finish Thickness :
- Flash
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Pattern :
- STAGGERED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Shell Material, Finish :
- Steel
- Material Flammability Rating :
- UL94 V-0
- Shell Size, Connector Layout :
- 1 DE E
- Total Number of Contacts :
- 9
- Voltage - Rated :
- 250VAC
- Body/Shell Style :
- PLUG
- Color :
- Black
- Contact Finish :
- Gold
- Contact Style :
- RND PIN-SKT
- MIL Conformance :
- yes
- Contact Material :
- COPPER ALLOY
- Factory Lead Time :
- 9 Weeks
- Orientation :
- Straight
- Packaging :
- Tray
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Flange Feature :
- Housing/Shell (4-40)
- Connector Style :
- D-Sub
- Operating Temperature :
- -65°C~125°C
- Number of Rows :
- 2
- Dielectric Withstanding Voltage :
- 1000VAC V
- Reference Standard :
- UL
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Receptacle, Female Sockets
- Insulation Resistance :
- 5000000000Ohm
- Datasheets
- DE09-SA-M2
DE09-SA-M2 Documents
DSA Series D-Sub Receptacle, Female Sockets 9-Position Female Solder 1 DE E Through Hole Copper Alloy Gold Steel
DE09-SA-M2 Overview
The product is packaged in Receptacle, Female Sockets.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the DSA Series, it can be found in this category.The device is operating at -65°C~125°C Operating Temperature.
DE09-SA-M2 Features
DSA series
DE09-SA-M2 Applications
There are a lot of Adam Tech
DE09-SA-M2 D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
