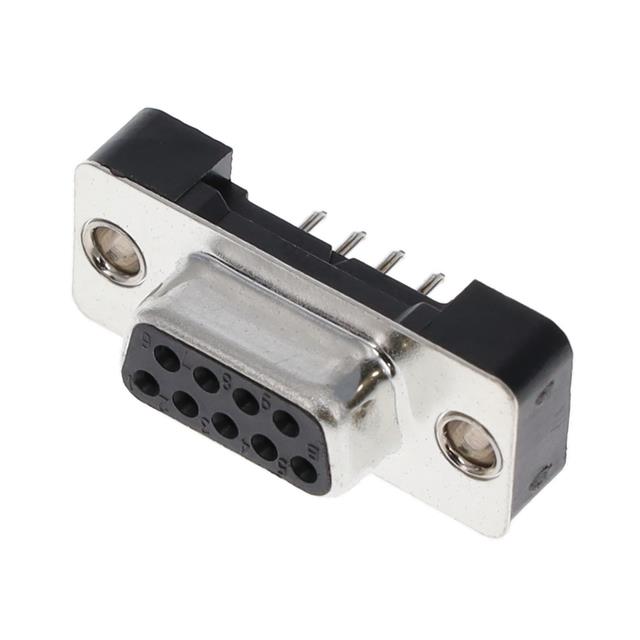

DE09-SA-M1
Or copy the link below:
- Mfr.Part #
- DE09-SA-M1
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS VERT SLDR
- Stock
- 151
- In Stock ：
- 151
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Current Rating (Amps) :
- 1A
- Contact Finish :
- Gold
- Shell Material, Finish :
- Steel
- Mounting Option 1 :
- LOCKING
- Flange Feature :
- Housing/Shell (Unthreaded)
- Number of Positions :
- 9
- Connector Type :
- Receptacle, Female Sockets
- Number of Rows :
- 2
- Contact Pattern :
- STAGGERED
- Series :
- DSA
- Dielectric Withstanding Voltage :
- 1000VAC V
- Material Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL
- Total Number of Contacts :
- 9
- Mounting Option 2 :
- JACKSCREW
- Contact Style :
- RND PIN-SKT
- Connector Style :
- D-Sub
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Voltage - Rated :
- 250VAC
- Insulation Material :
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Factory Lead Time :
- 9 Weeks
- Operating Temperature :
- -65°C~125°C
- Contact Finish Thickness :
- Flash
- Termination :
- Solder
- Packaging :
- Tray
- Reliability :
- COMMERCIAL
- Shell Size, Connector Layout :
- 1 DE E
- Mounting Type :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Color :
- Black
- Insulation Resistance :
- 5000000000Ohm
- Contact Material :
- COPPER ALLOY
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- DE09-SA-M1
DSA Series D-Sub Receptacle, Female Sockets 9-Position Solder 1 DE E Through Hole Copper Alloy Gold Steel
DE09-SA-M1 Overview
It comes in Receptacle, Female Sockets packaging.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the DSA Series.In this case, the device operates at -65°C~125°C Operating Temperature.
DE09-SA-M1 Features
DSA series
DE09-SA-M1 Applications
There are a lot of Adam Tech
DE09-SA-M1 D-Sub Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
