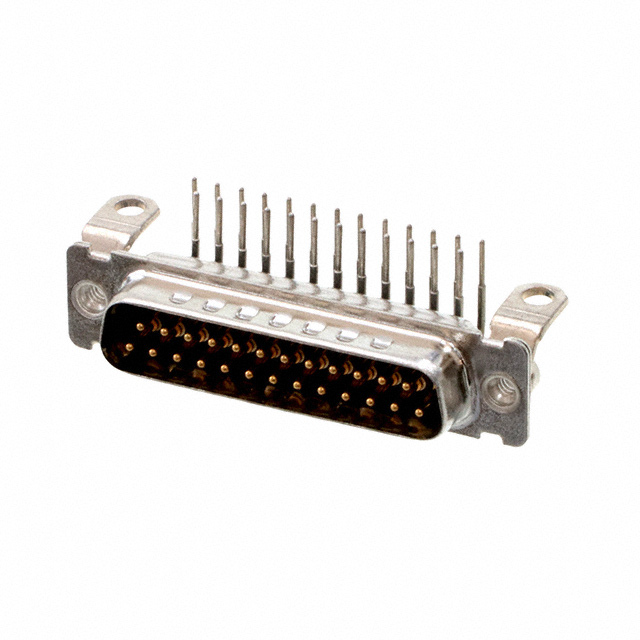

DBMP25PJK87
Or copy the link below:
- Mfr.Part #
- DBMP25PJK87
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 25POS R/A SLDR
- Stock
- 33,767
- In Stock ：
- 33,767
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 2.8mm
- Shell Material, Finish :
- Steel, Tin-Nickel Plated
- Feature :
- Grounding Indents, Mounting Brackets
- Plating :
- Steel, Tin
- Mount :
- Panel, Through Hole
- UL Flammability Code :
- 94V-0
- Total Number of Contacts :
- 25
- Packaging :
- Bulk
- Termination :
- Solder
- Mounting Angle :
- RIGHT ANGLE
- Product Type :
- D-Sub Connectors - Standard Density
- Product Category :
- D-Sub Standard Connectors
- DIN Conformance :
- No
- Contact Form :
- Machined
- Contact Current Rating :
- 7.5A
- Contact Finish :
- Gold
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- Contact Style :
- Pin
- Number of Positions :
- 25
- Published :
- 2000
- Number of Rows :
- 2
- RoHS :
- Details
- Contact Type :
- Signal
- Depth :
- 19.18mm
- Shell Finish :
- Tin
- Body Material :
- Steel
- Factory Lead Time :
- 21 Weeks
- Product Status :
- Active
- Filter Feature :
- No
- Manufacturer :
- ITT Cannon
- Option :
- GENERAL PURPOSE
- Color :
- Black
- Max Current Rating :
- 7.5A
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- MIL Conformance :
- No
- IEC Conformance :
- No
- Empty Shell :
- No
- Type :
- PLUG
- Mounting Style :
- Panel
- Flange Feature :
- Board Side (4-40)
- Shell Size, Connector Layout :
- 3 DB B
- REACH SVHC :
- No SVHC
- Housing Material :
- Thermoplastic
- Features :
- Grounding Indents, Mounting Brackets
- Mixed Contacts :
- No
- Ingress Protection :
- --
- Gender :
- Male
- Voltage Rating :
- --
- Contact Gender :
- Pin (Male)
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Contact Finish Thickness :
- Flash
- Wire Gauge :
- --
- Series :
- D*M
- HTS Code :
- 8536.69.40.30
- Package :
- Bulk
- Current Rating (Amps) :
- 7.5A
- Contact Plating :
- Gold, Tin
- Orientation :
- RIGHT ANGLE
- Subcategory :
- D-Sub Connectors
- Termination Style :
- Solder
- Connector Style :
- D-Sub
- Current Rating :
- 7.5A
- Length :
- 53.04mm
- Connector Type :
- Plug, Male Pins
- Brand :
- ITT Cannon
- ECCN Code :
- EAR99
- Operating Temperature :
- -55°C~125°C
- Shell Size :
- 3 (B)
- Contact Material :
- COPPER ALLOY
- RoHS Status :
- RoHS Compliant
- Backset Spacing :
- --
- Number of Ports :
- 1
- Datasheets
- DBMP25PJK87
D*M Series D-Sub Plug, Male Pins 25-Position Male Signal Solder 3 DB B Panel Mount, Through Hole, Right Angle Copper Alloy Gold Steel, Tin-Nickel Plated
DBMP25PJK87 Overview
The product is packaged in Plug, Male Pins.Panel Mount, Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the D*M Series, it can be found in this category.A variety of tasks can be managed via its 1 ports.With its Grounding Indents, Mounting Brackets feature, it is more powerful in many ways.In this case, Panel, Through Hole mounts the part.The device is operating at -55°C~125°C Operating Temperature.
DBMP25PJK87 Features
D*M series
DBMP25PJK87 Applications
There are a lot of ITT Cannon, LLC
DBMP25PJK87 D-Sub Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
