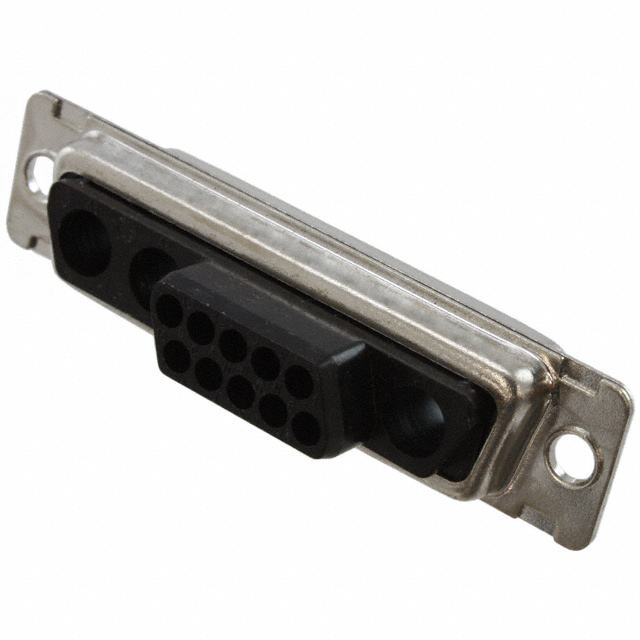

DBA13W3SA197F0

Manufacturer :

ITT Cannon

Product Category :

D-Sub, D-Shaped Connector Housings

MIL Conformance :

No

Connector Type :

Receptacle for Female Contacts

Mixed Contacts :

yes

Flange Feature :

Housing/Shell (Unthreaded)

Shell Finish Thickness :

-

Termination Style :

Crimp

Shell Finish :

Tin

Product Type :

D-Sub Connectors - Standard Density

Note :

Contacts Not Included

Termination Type :

Crimp

DIN Conformance :

No

Dielectric Material :

Polycyclohexylenedimethylene Terephthalate (PCT)

Brand :

ITT Cannon

IEC Conformance :

No

Features :

-

Shell Size, Connector Layout :

3 DB B - 13C3 13W3

Mating Cycles :

-

RoHS :

Details

Mounting Style :

Wire

Contact Finish - Mating :

NOT SPECIFIED

Body Material :

Steel

Color :

Black

Product Category :

D-Sub Standard Connectors

Shell Material, Finish :

Steel, Tin-Nickel Plated

Packaging :

Bulk

Package :

Bulk

Moisture Sensitivity Level (MSL) :

Not Applicable

Factory Lead Time :

11 Weeks

Insulation Material :

Polyester

Empty Shell :

yes

Mount :

Cable, Free Hanging

UL Flammability Code :

94V-0

Feature :

Shielded

Filter Feature :

No

Contact Type :

Signal and Coax or Power

Number of Contacts :

13

Gender :

Receptacle

Ingress Protection :

-

RoHS Status :

RoHS Compliant

Orientation :

Straight

Published :

2000

Operating Temperature :

-55°C~105°C

Option :

GENERAL PURPOSE

Manufacturer :

ITT Cannon

Product Status :

Active

Type :

Receptacle

Mounting Angle :

Straight

REACH SVHC :

No SVHC

Contact Gender :

Without Socket Contacts

Series :

Combo D®, D*A

Subcategory :

D-Sub Connectors

Mounting Type :

Panel Mount

Number of Rows :

2

Base Product Number :

DBA1

Number of Positions :

13 (10 + 3 Coax or Power)

Connector Style :

D-Sub, Combo
