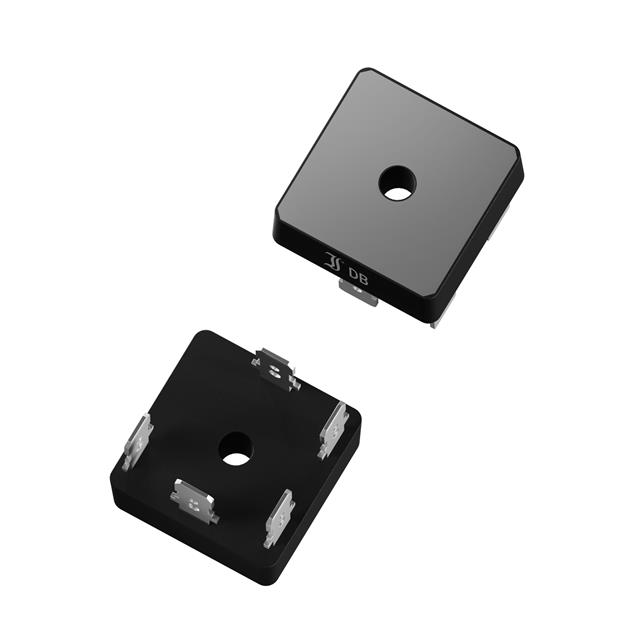

DB35-01

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Technology :

Avalanche

Diode Type :

BRIDGE RECTIFIER DIODE

Case Connection :

Isolated

Additional Feature :

UL RECOGNIZED

ECCN (US) :

EAR99

Subcategory :

Bridge Rectifier Diodes

PCB changed :

5

Number of Terminals :

4

Number of Phases :

1

ECCN Code :

EAR99

Maximum Operating Temperature (°C) :

150

Terminal Position :

UPPER

Package Length :

28.5

Mounting :

Screw

Qualification Status :

Not Qualified

Peak Reflow Temperature (Cel) :

260

Peak Reverse Current (uA) :

5

Pin Count :

5

Package Height :

10

Configuration :

Single

HTS Code :

8541.10.00.80

Manufacturer :

Diotec Electronics Corp

JESD-30 Code :

S-PUFM-W4

Reach Compliance Code :

Unknown

Peak Reverse Repetitive Voltage (V) :

100

Supplier Temperature Grade :

COMMERCIAL

Peak Non-Repetitive Forward Surge Current (A) :

500

Minimum Operating Temperature (°C) :

-50

Peak Reverse Recovery Time (ns) :

1500(Typ)

Peak RMS Reverse Voltage (V) :

70

Diode Element Material :

SILICON

Number of Elements :

4

RoHS Status :

Yes with exemptions

Packaging :

Box

Output Current-Max :

35 A

Terminal Form :

Wire

Bridge Type :

Three Phase

Surface Mount :

No

Military :

No

Non-rep Pk Forward Current-Max :

400 A

Rep Pk Reverse Voltage-Max :

100 V

Peak Average Forward Current (A) :

35@Ta=50C

Package Shape :

Square

Package Width :

28.5
