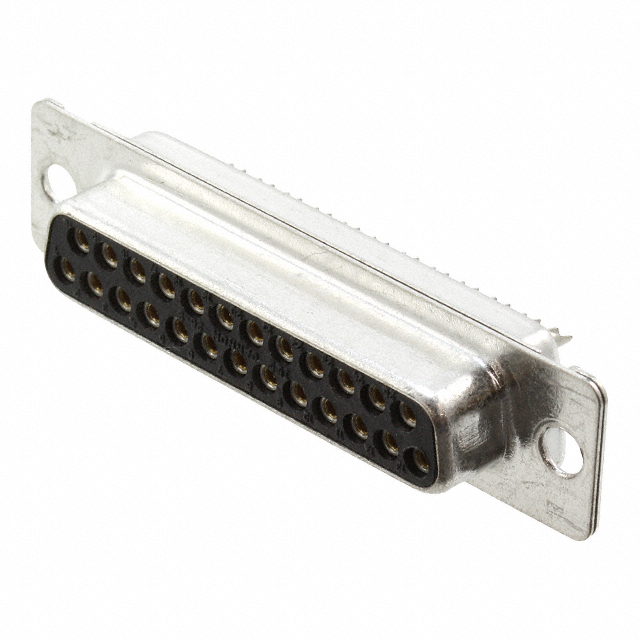

DB-25S-A197
Or copy the link below:
- Mfr.Part #
- DB-25S-A197
- Manufacturer
- ITT Cannon
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 25POS PNL MNT
- Stock
- 6,392
- In Stock ：
- 6,392
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- RoHS :
- Details
- Body Material :
- Metal, Steel
- Flange Feature :
- Housing/Shell (Unthreaded)
- Product Category :
- D-Sub Standard Connectors
- Option :
- GENERAL PURPOSE
- Manufacturer :
- ITT Cannon
- Contact Finish - Mating :
- Gold Over Nickel
- Number of Ports :
- 1
- Contact Type :
- Signal
- MIL Conformance :
- No
- Breakdown Voltage :
- 1.25kV
- Contact Finish Thickness :
- Flash
- Material :
- Steel
- Mixed Contacts :
- No
- DIN Conformance :
- No
- Series :
- Original D
- Backset Spacing :
- --
- Empty Shell :
- No
- ECCN Code :
- EAR99
- HTS Code :
- 8536.69.40.30
- Contact Design :
- STAMPED, PREASSEM
- UL Flammability Code :
- 94V-0
- Body Breadth :
- 0.494 inch
- Ingress Protection :
- --
- Mounting Style :
- Through Hole
- Contact Finish :
- Gold
- Mounting Angle :
- Straight
- Connector Type :
- D-Sub, Receptacle, Signal
- Reliability :
- COMMERCIAL
- Total Number of Contacts :
- 25
- Depth :
- 17.11mm
- Contact Resistance :
- 10MOhm
- Contact Gender :
- Socket (Female)
- Contact Form :
- Machined
- Plating :
- Steel, Tin
- Rated Current (Signal) :
- 5A
- Max Operating Temperature :
- 125°C
- Width :
- 12.55mm
- Product Type :
- D-Sub Connectors - Standard Density
- Package :
- Bulk
- Shell Size :
- 3/B
- Voltage - Rated DC :
- 350V
- Brand :
- ITT Cannon
- Gender :
- Receptacle
- Product Status :
- Active
- Contact Material :
- COPPER ALLOY
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 5A
- Color :
- Black
- Contact Style :
- RND PIN-SKT
- Number of Positions :
- 25
- Features :
- --
- RoHS Status :
- RoHS Compliant
- Shell Material, Finish :
- Steel, Tin-Nickel Plated
- Packaging :
- Bulk
- Number of Terminations :
- 25
- Termination :
- Solder
- Filter Feature :
- No
- Housing Material :
- Polyester
- Shell Finish :
- Tin
- Mounting Type :
- Panel Mount
- Radiation Hardening :
- No
- Package / Case :
- Metal
- Published :
- 2016
- Contact Plating :
- Gold, Tin
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Shell Size, Connector Layout :
- 3 (DB, B)
- Factory Lead Time :
- 12 Weeks
- Material Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL
- Termination Style :
- Solder
- Mount :
- Panel
- JESD-609 Code :
- e4
- Orientation :
- Straight
- Connector Style :
- D-Sub
- Length :
- 53.04mm
- Contact Pattern :
- STAGGERED
- Current Rating (Amps) :
- 5A
- Type :
- Receptacle
- Min Operating Temperature :
- -55°C
- Operating Temperature :
- -55°C ~ 125°C
- REACH SVHC :
- No SVHC
- Wire Gauge :
- --
- Pbfree Code :
- yes
- Voltage Rating :
- --
- Number of Rows :
- 2
- IEC Conformance :
- No
- Datasheets
- DB-25S-A197
DB-25S-A197 Documents
Original D Series D-Sub D-Sub, Receptacle, Signal 25-Position Receptacle Signal Solder 3 (DB, B) Panel Mount Copper Alloy Gold Steel, Tin-Nickel Plated
DB25SA197 Overview
A D-Sub, Receptacle, Signal package is included with it.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Original D Series.Use it below 125°C.A minimum temperature of -55°C must be maintained for the operation of this device.Metal refers to a package enclosing a device.With 1 ports, it is capable of managing a wide range of tasks.By Panel, the part is mounted.In this chip, the terminations are all 25.Operating temperature is set to -55°C ~ 125°C.
