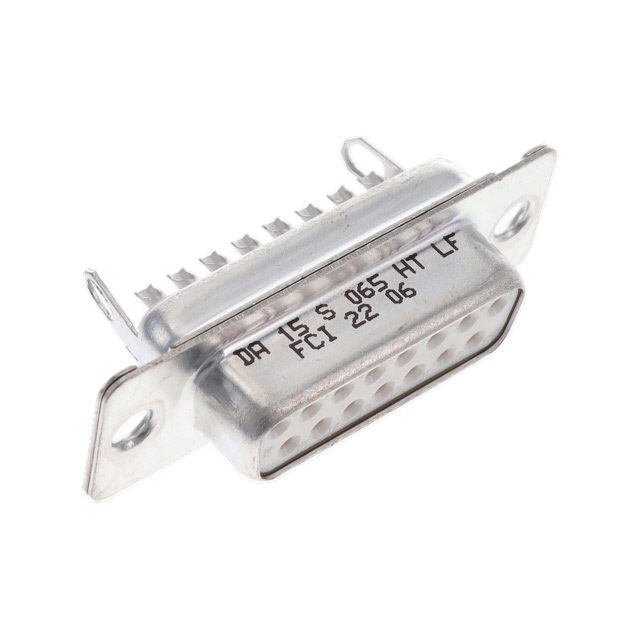

DA15S065HTLF
Or copy the link below:
- Mfr.Part #
- DA15S065HTLF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS SLDR CUP
- Stock
- 44,550
- In Stock ：
- 44,550
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Connector Style :
- D-Sub
- Number of Ports :
- 1
- Contact Plating :
- GXT, Gold, Tin
- Max Voltage Rating (AC) :
- 1kV
- Operating Temperature :
- -55°C~125°C
- Connector Type :
- Receptacle, Female Sockets
- Contact Type :
- Signal
- Material Flammability Rating :
- UL94 V-0
- Length :
- 38.76mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Gender :
- FEMALE
- Dielectric Material :
- Thermoplastic
- Radiation Hardening :
- No
- Orientation :
- Straight
- Contact Material :
- COPPER ALLOY
- Housing Material :
- Thermoplastic
- Feature :
- Shielded
- Max Supply Voltage (AC) :
- 1kV
- Mounting Type :
- Free Hanging (In-Line)
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 125°C
- Series :
- D
- Voltage - Rated :
- 300V
- Shell Size, Connector Layout :
- 2 DA A
- Min Operating Temperature :
- -55°C
- Factory Lead Time :
- 10 Weeks
- Termination :
- Solder Cup
- Contact Finish :
- Gold, GXT™
- Number of Positions :
- 15
- Flange Feature :
- Housing/Shell (Unthreaded)
- Current Rating :
- 5A
- Number of Rows :
- 2
- Current Rating (Amps) :
- 5A
- Number of Terminations :
- 15
- Shell Material, Finish :
- Steel, Tin Plated
- Packaging :
- Tray
- Color :
- Natural
- Mount :
- Free Hanging
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- DA15S065HTLF
D Series D-Sub Receptacle, Female Sockets 15-Position Female Signal Solder Cup 2 DA A Free Hanging (In-Line) Copper Alloy Gold, GXT™ Steel, Tin Plated
DA15S065HTLF Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Tray case is used.It belongs to the D Series of products.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -55°C.It features 1 ports for managing a variety of tasks.Its Shielded feature renders it more powerful in many ways.The part is mounted by Free Hanging.The chip has 15 terminations.The device runs in -55°C~125°C Operating Temperature.
DA15S065HTLF Features
15 basic kinds of terminations
D series
DA15S065HTLF Applications
There are a lot of Amphenol ICC (FCI)
DA15S065HTLF D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
